Legend:
P.C = Power Control H.C. = Hand Control
L.W. = Leaning Wheel S.W. = Straight Wheel
D.F. = Double Frame S.F. = Single Frame

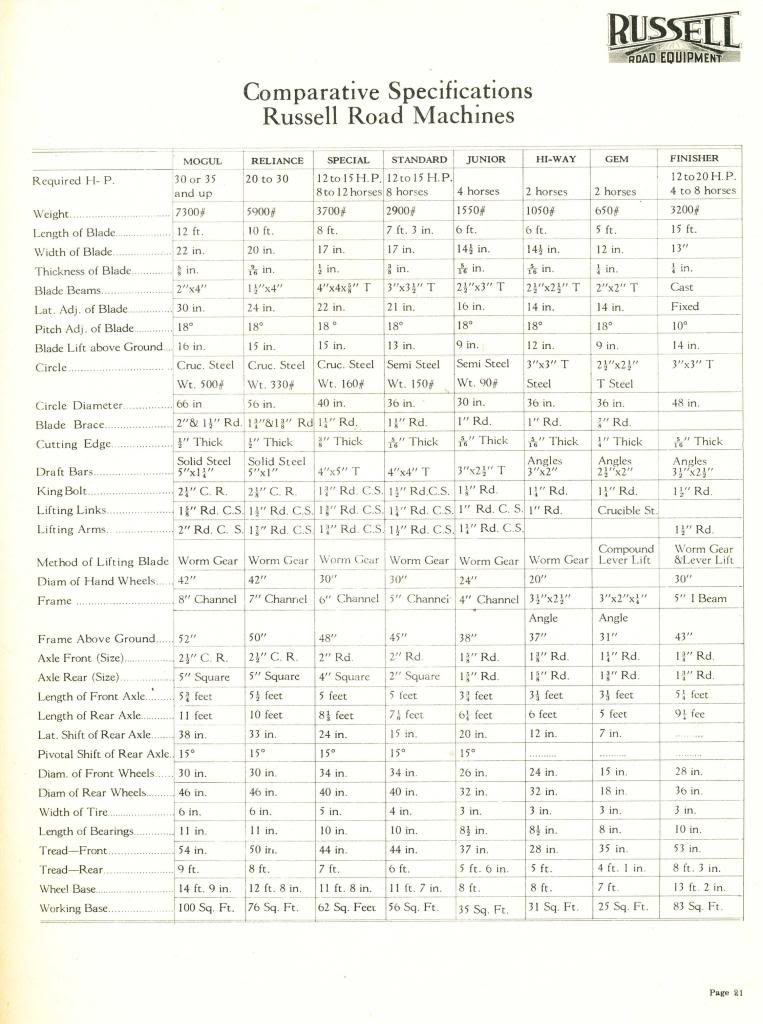

Russell Spec.
Early Russell Graders:

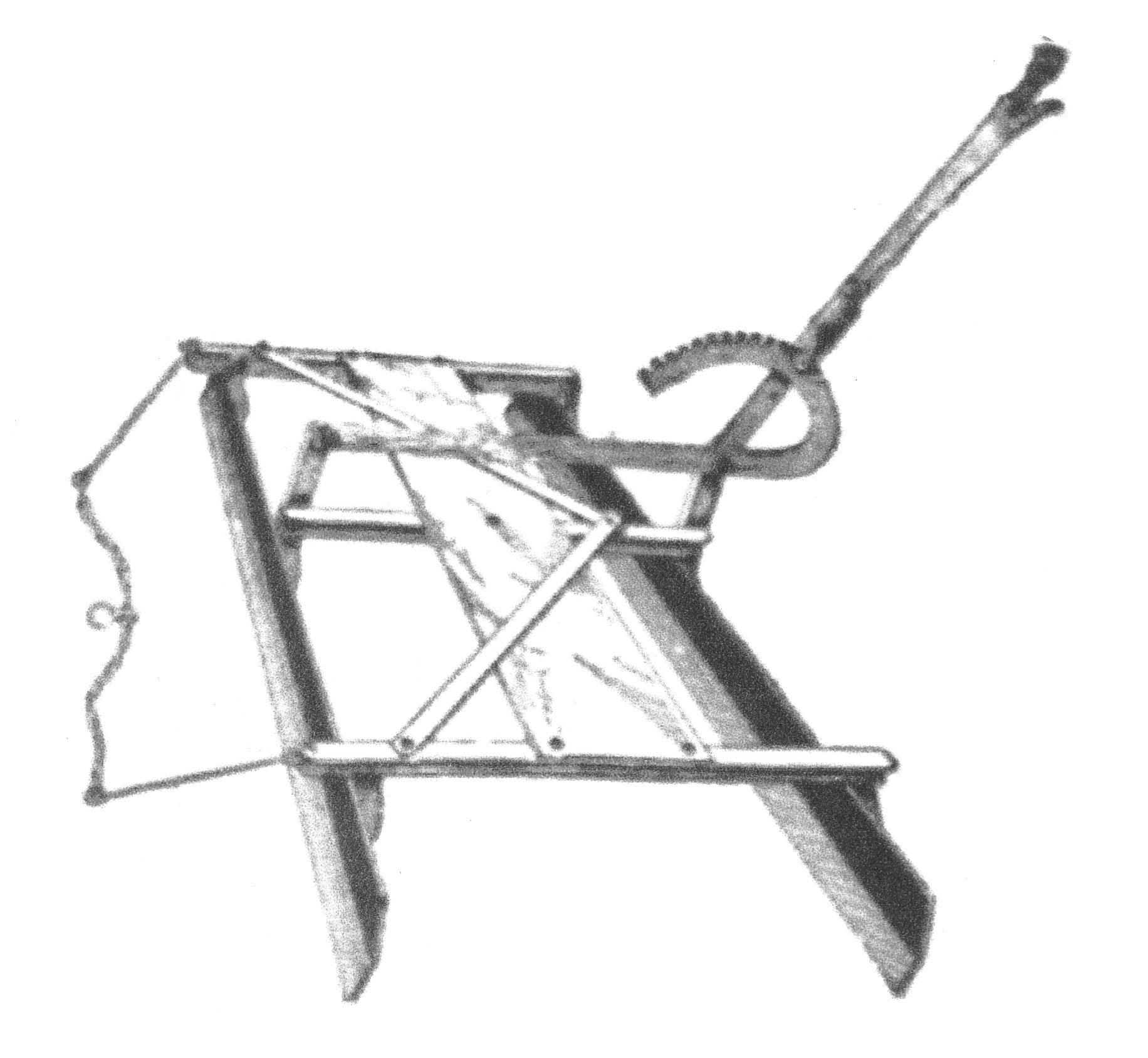

Russell Drag
***
1916 Russell Pony, 6′ blade, 1200# weight
***
1921-24 Russell Pony Patrol P101-
***

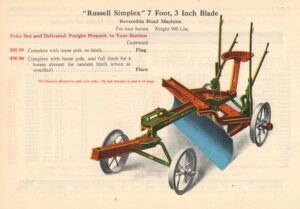

1908 Russell Simplex, 7′-3″ blade, 900# weight
***
1908-12 Russell Traction Special T501- ?
***

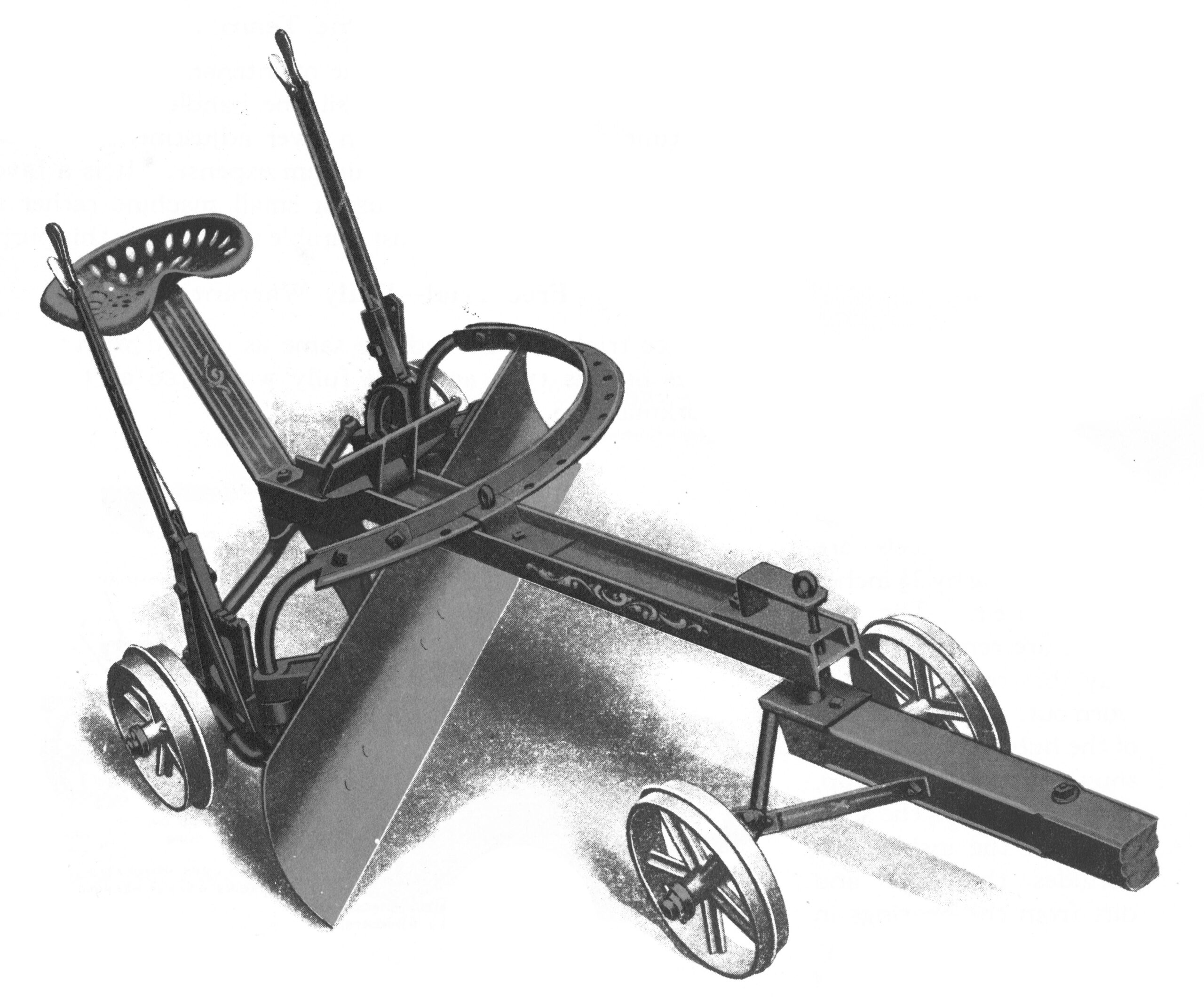

1914-15 Russell Kid 5′ blade 500# weight
***

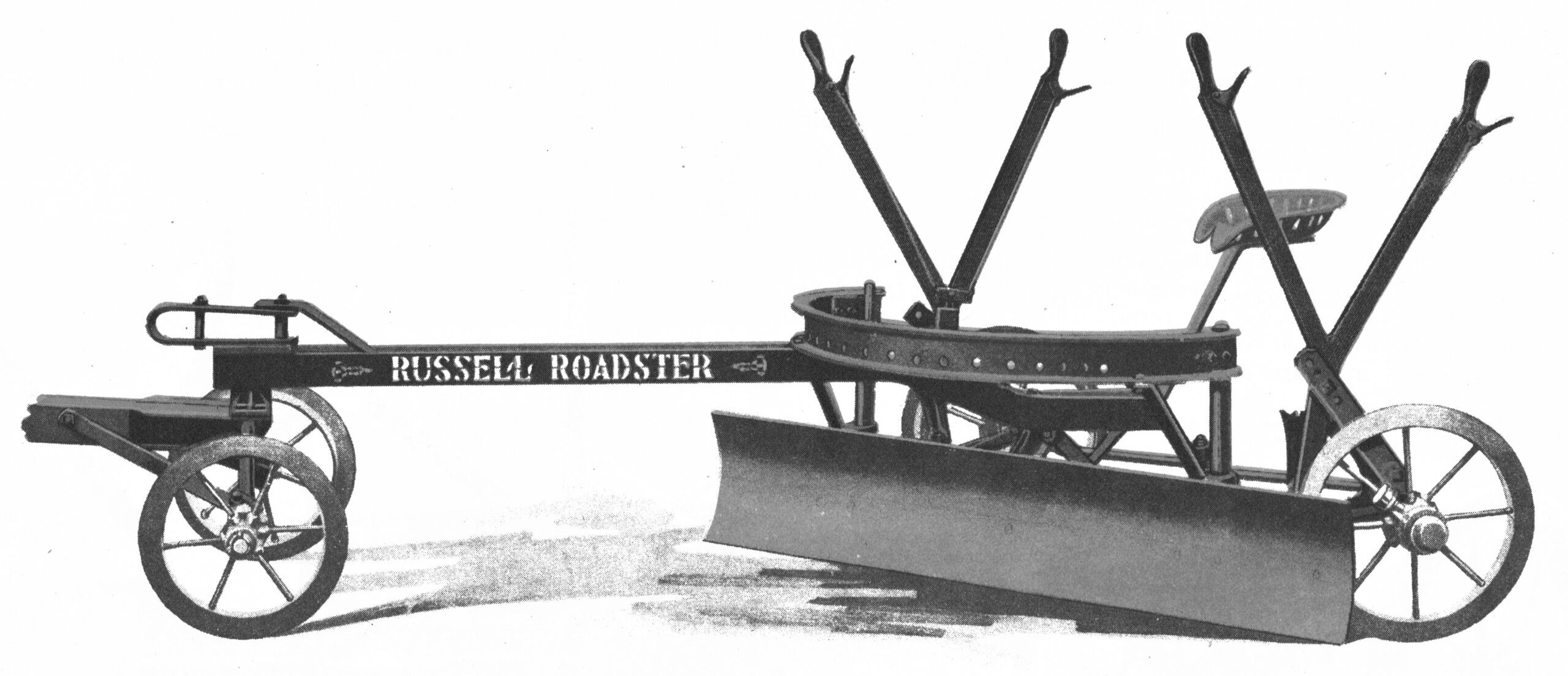

1915 Russell Roadster 6′ blade 700# weight
***

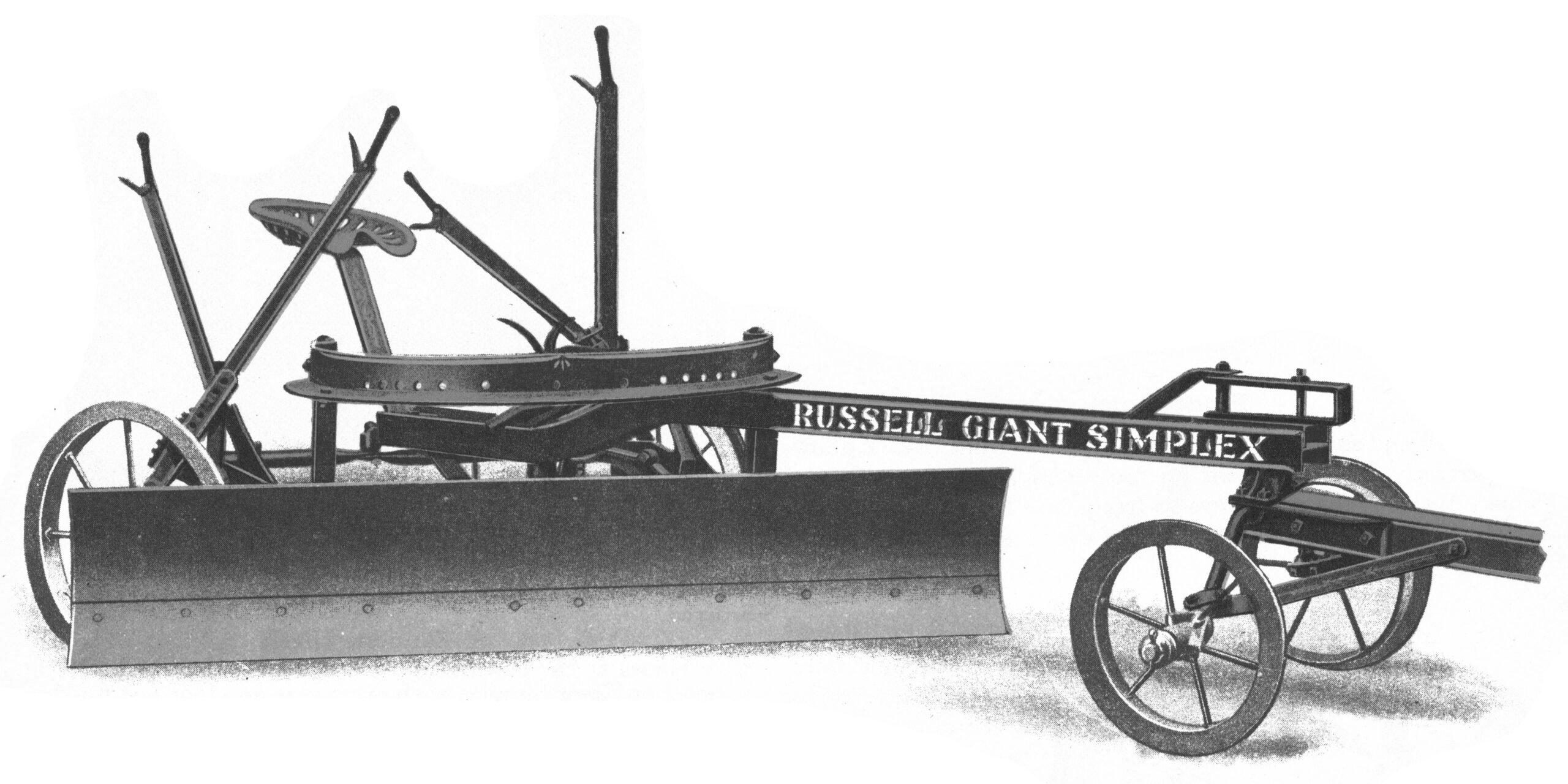

1914-15 Russell Giant Simplex 7′-3″ blade 1000# weight
***

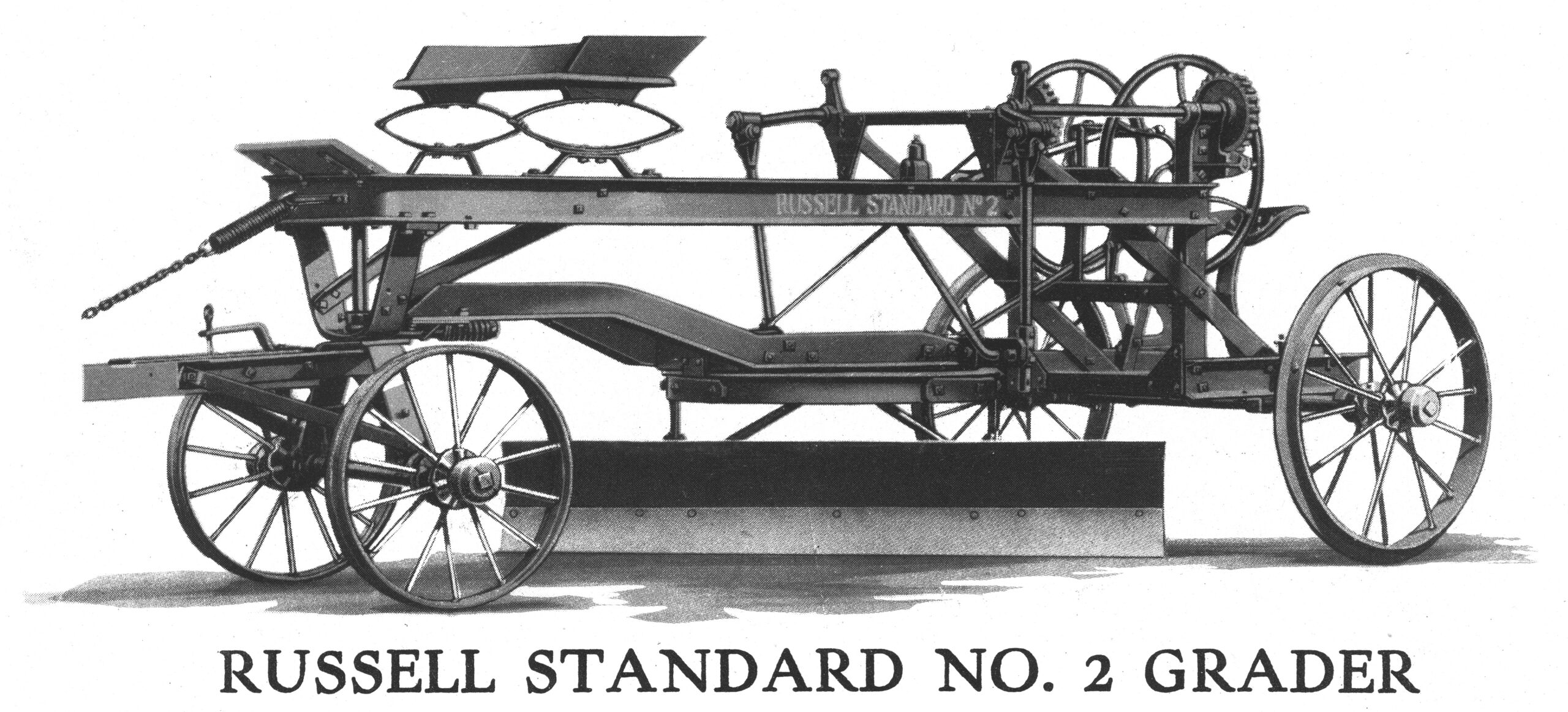

1926-28 Russel No 2 Std Blade Grader D-1001 to D-1500 7′-3″ Blade 3750# weight
***

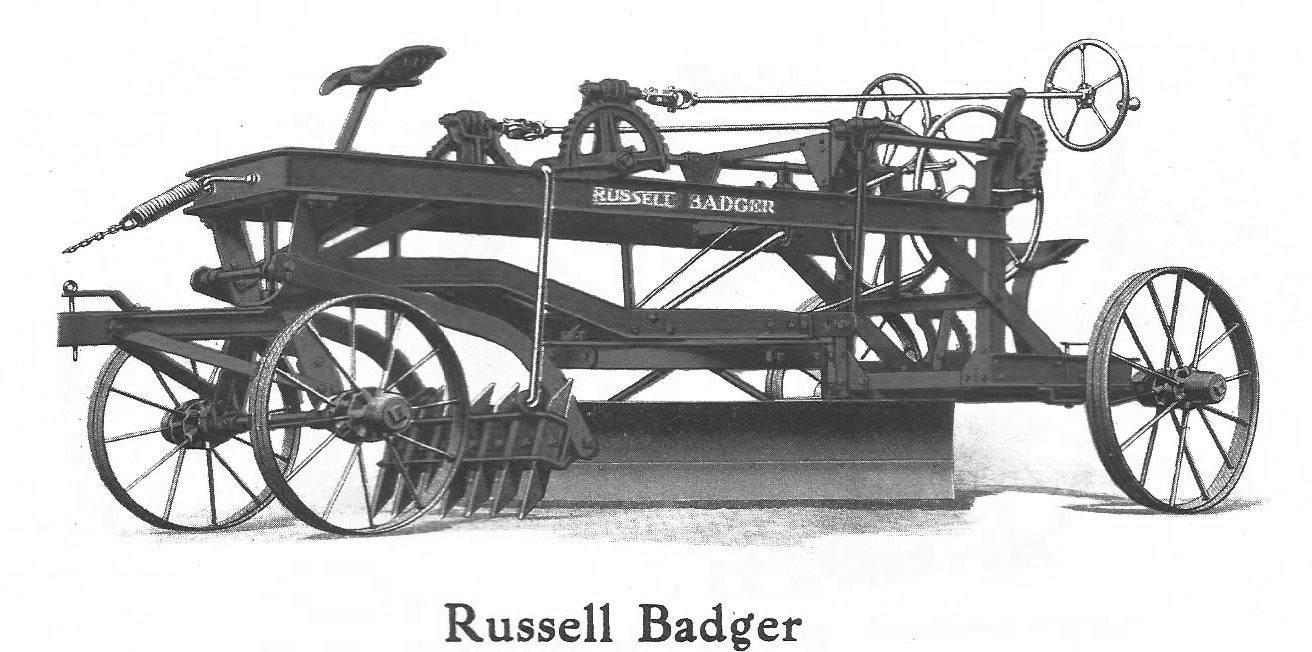

1924-27 No 1 Std. Blade (Badger) Grader E-101 -101 to E-1200 2650# weight, blade 6′-3″, 7′, 8, thickness 1/2
***

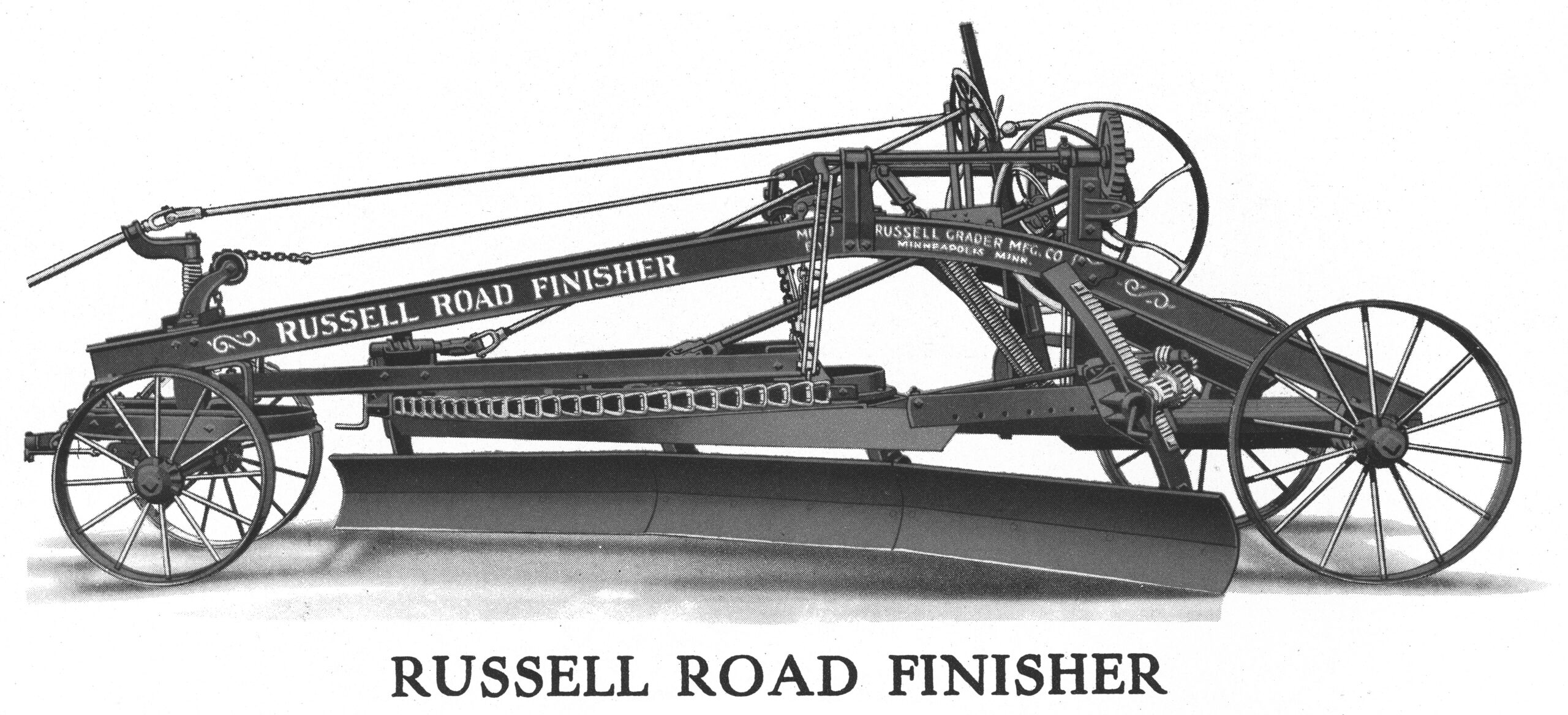

1919-27 Road Finisher F-1 to F-580, 15′ blade, 3200# weight
***

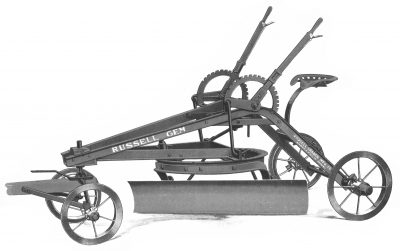

1916-23 GEM Blade Grader G-1 to G-1575, 5′ blade, 760# weight
***
1926-28 3 Blade Grader G-2001 to G-2800, 6′, 8′, 10′ blade, 1600# weight
***

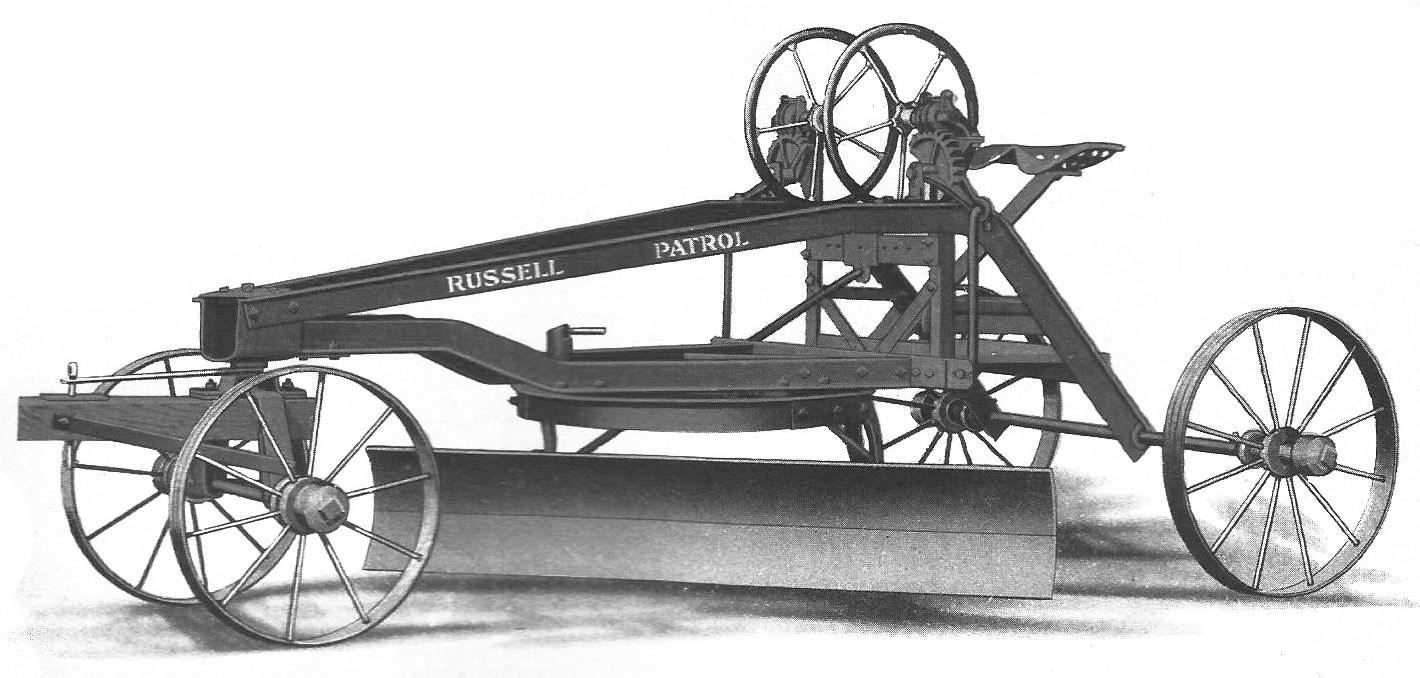

1918-25 Patrol Blade Grader H-1 to H-4375, 6′ blade

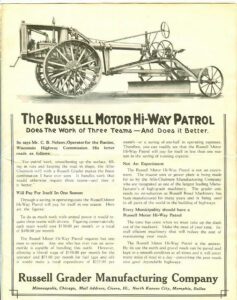

H-1 to H-2000…Hi-Way Patrol…1918 to 1920..Location of Number Plate, Cross Channel Under Seat
H-2001 to H-3500…Hi-Way Patrol…1920 to 1922… Location of Number Plate, Cross Channel Under Seat
H-3501 to H4375…Hi-Way Patrol…1922-1923…Location of Number Plate, Cross Channel Under Seat
***

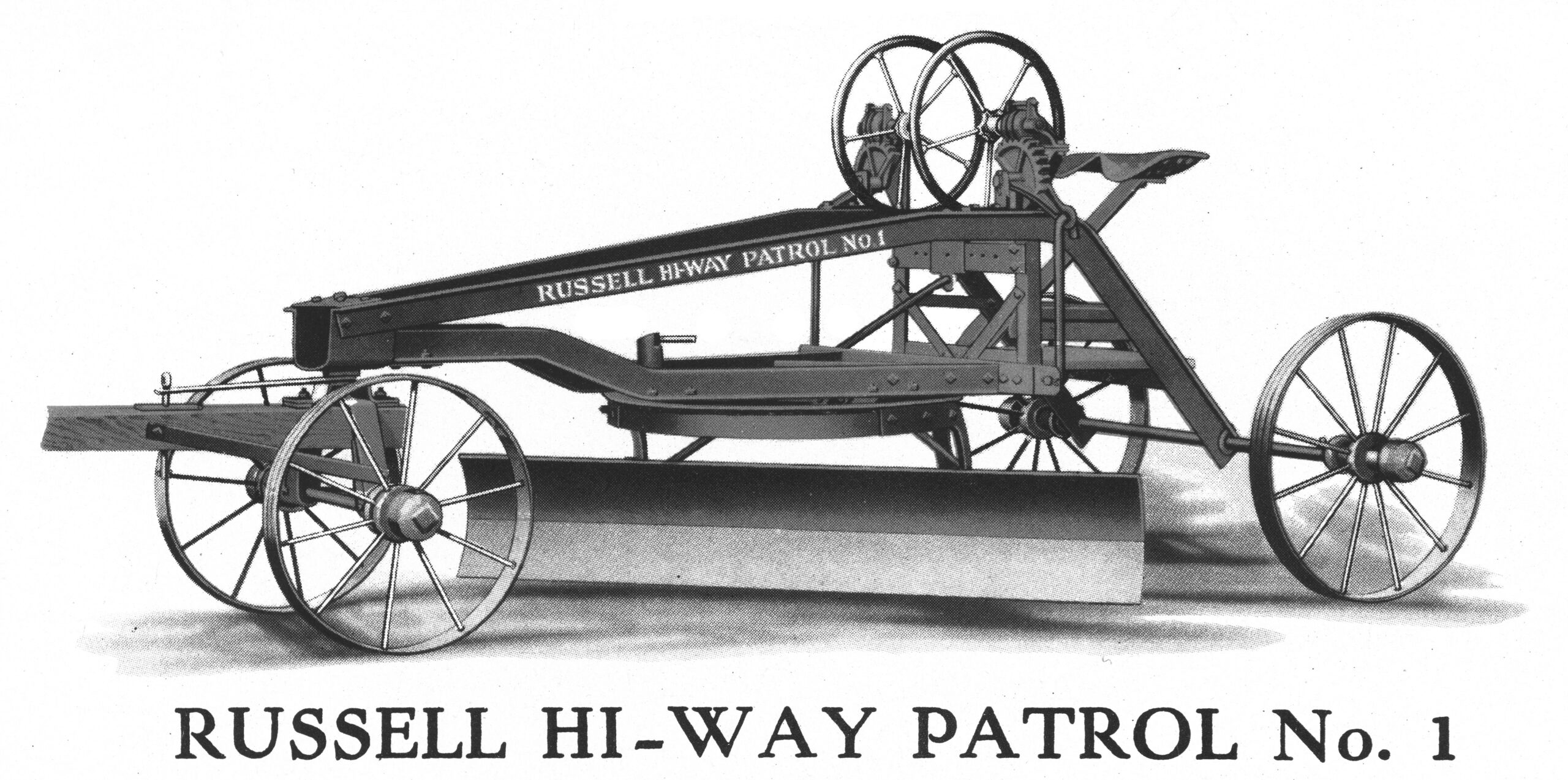

1925-28 Hi-way Patrol No 1 Blade Grader, 1600# weight
P-101 to P-125 1921-1922
P-101 to P-2425 1922-1929
***
1926-28 Hi-way Patrol No 2 Blade Grader H-4376 to H-10875, 6′,7′.8′,10′ blade, 1350# weight
H-4376 to H-9275…Hi-Way Patrol No. 2…1923 to 1926…
Location of Number Plate, Main Frame, Right Side
H-9276 to H-10875…Hi-Way Patrol No. 2…1927 TO 1929…
Location of Number Plate, Main Frame, Right Side

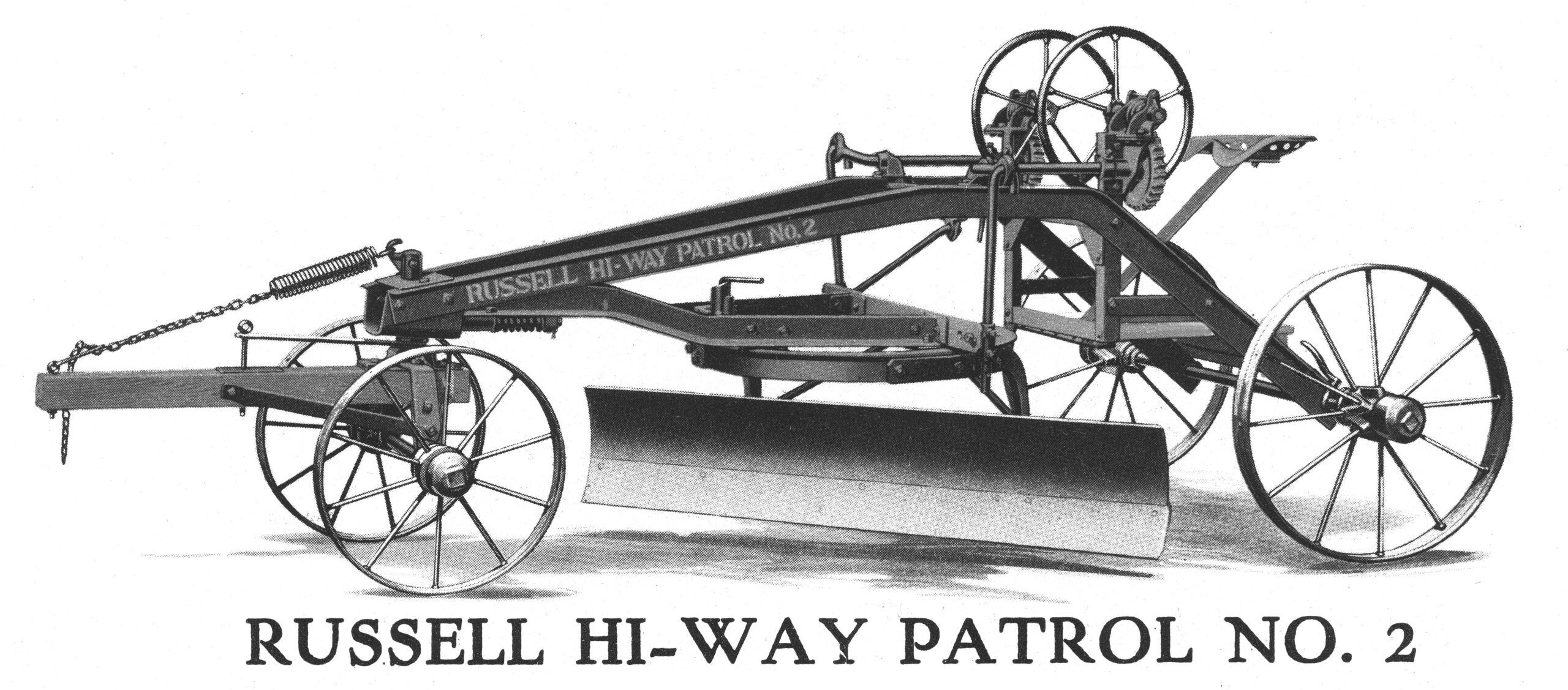

Russell Hi-Way Patrol No. 2 Specifications
Specifications
Weight….1350 lbs
Blade……4 sizes made of Special Carbon Steel
6 ft. long, 14 1/4 in. wide 1/4 in. thick
7 ft. long, 14 1/4 in. wide 1/4 in. thick
8 ft. long, 14 1/4 in. wide 1/4 in. thick
10 ft. long, 15 1/4 in. wide 5/16 in. thick
Cutting Edge…Made of Special Carbon Steel, 5/16 in. thick
Blade Beams…3/4 x 2 1/2 in. Flat Bars
Blade Braces….1 in round
Blade Pitch Adjustment…4 positions
Blade Slide Shift…14 in.
Blade Lift Above Ground…11 in.
Circle…36 in. diameter, 3 x 3 x 3/8 in. “I” Steel
Draw-bars…3 in. x 2 in. x 5/16 in. angles
Kingbolt…1 1/4 in. round
Method of Blade Lift…Worm Gear
Lifting Links…1 in. round Special Carbon Steel
Lifting Arms…1 1/4 in. round
Hand Wheels…20 in. diameter. 1 1/4 in. rims
Frame…3 1/2 in. x 2 1/2 x 5/16 in angle
Axles…Made of Special Carbon Steel
Front, 1 3/8 in. round. 4 ft. 7 in. long
Rear, 1 5/8 in. round. 6 ft. 6 in. long
Bearings…Front, 1 3/8 in. x 6 in.
Rear, 1 11/16 in x 8 1/2 in.
Wheels…With Removable Boxes, “screwed on” Hub Caps
Front, 24 in. diameter, 1/2 in. x 3 in. Tires
Rear, 32 in. diameter, 1/2 in. x 3 in. Tires
Tread…Front, 46 1/2 in. Rear, 66 in.
Wheelbase…100 in.
***

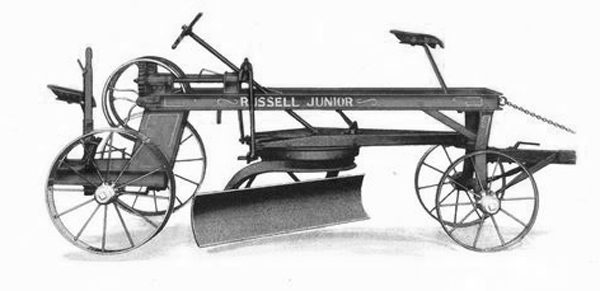

1912-28 Jr. Blade Grader J-1 to J-10425, 6′ blade, 1600# weight
***
1913-22 Mogul Blade Grader M50-M1446, 12′ blade, 10,000# weight
M-50 to M-361 1913-1915
M-362-M1446 1915-1922
***
1922-28 Super Mougl Blade Grader M1447-M2501, 12′ blade, 10,000# weight
M-1447 to M-3425 1922-1927
M-2197-M-2500 1927-1928
M-2501-UP 1928
***
1915 20 Planer N-1 to N-310
***
Russell Reliance Grader
1915-23 Reliance Blade Grader R-50 to R-1100, 10′ blade, 5750# weight
***
1923-28 Super Reliance Grader, 10′ blade, 10,000# weight
R-1101 to R-1450 1923-1928
R-1501-up 1929
Blade 22½” wide, and 9/16″ thick
***

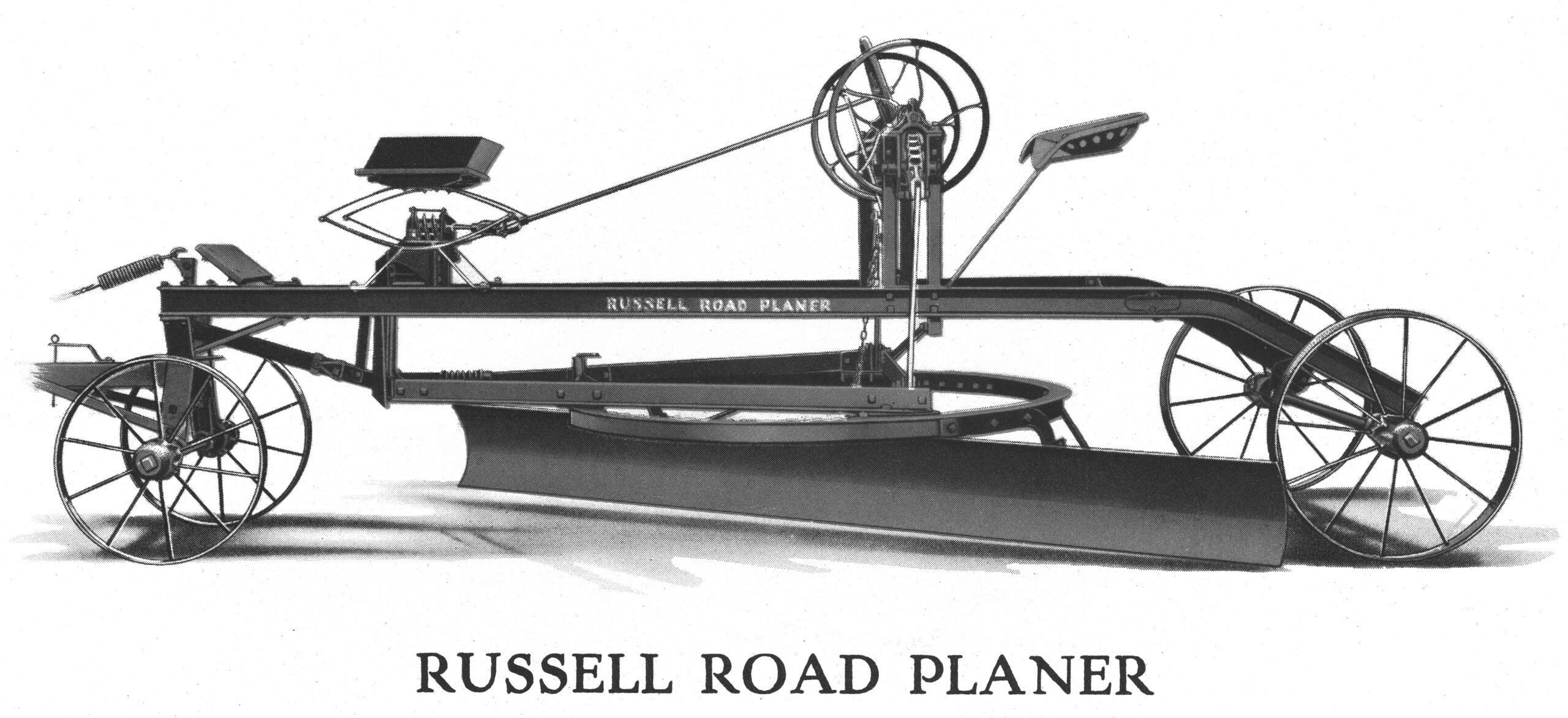

1923-25 Road Planer RP-101 to RP-400
***

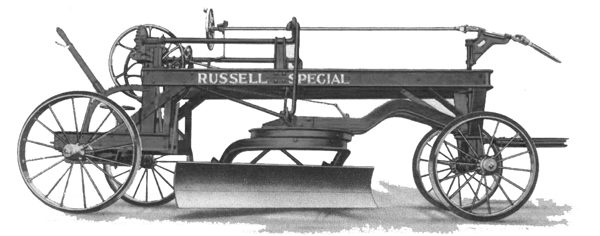

1912-24 Special Blade Grader T-2001 to T-5999, 8′ blade, 3700# weight
***
1924-28 Super Special Grader, 8′,9′,10′,12′ blade, 5900# weight
T-6000 to T-6100 1924
T-6101-6399 1924-1925
T-6400-7500 1925-1928
T-7501-up 1928
Blade 20 3/4″ tall, and 9/16″ thick
***

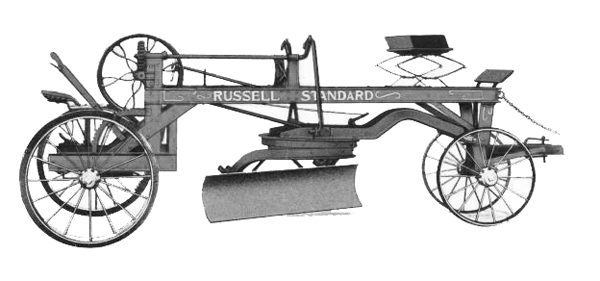

1912-25 Std Blade Grader S-1001 to S-4950, 7′-3″ blade, 2900# weight
***

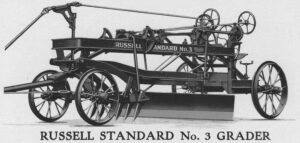

1925-28 Russell Standard No. 3 S4951-?, 8′,10′,12′ blade, 3800# weight
***

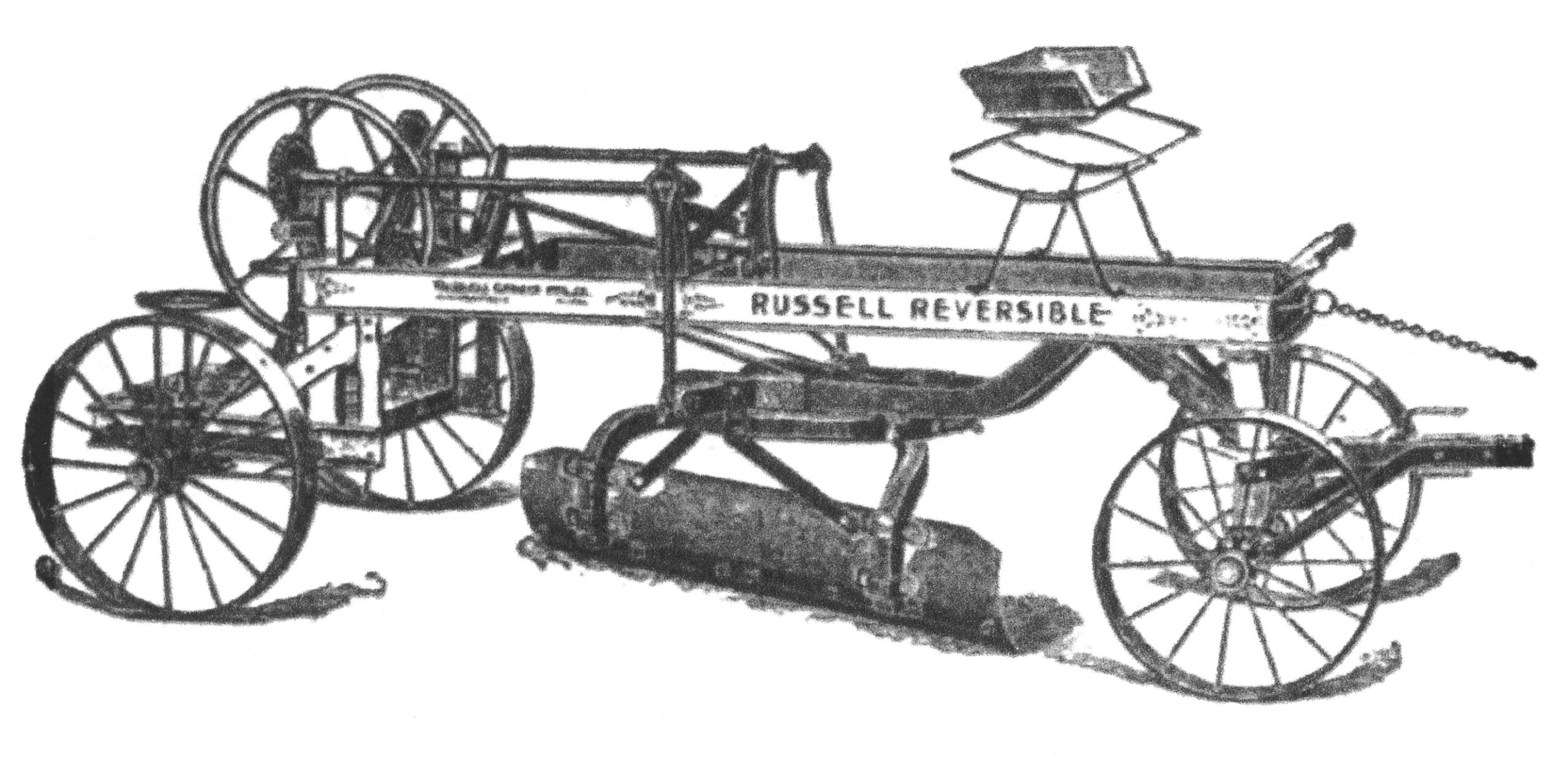

1908-12 Reverse Blade Grader S-501 to S-1000
***

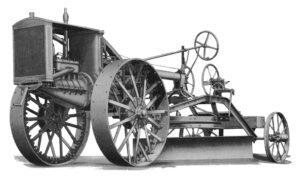

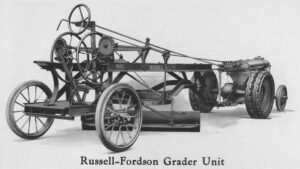

Russell was making progress towards power units starting with a Fordson power unit
An AC powered version was made as well
***

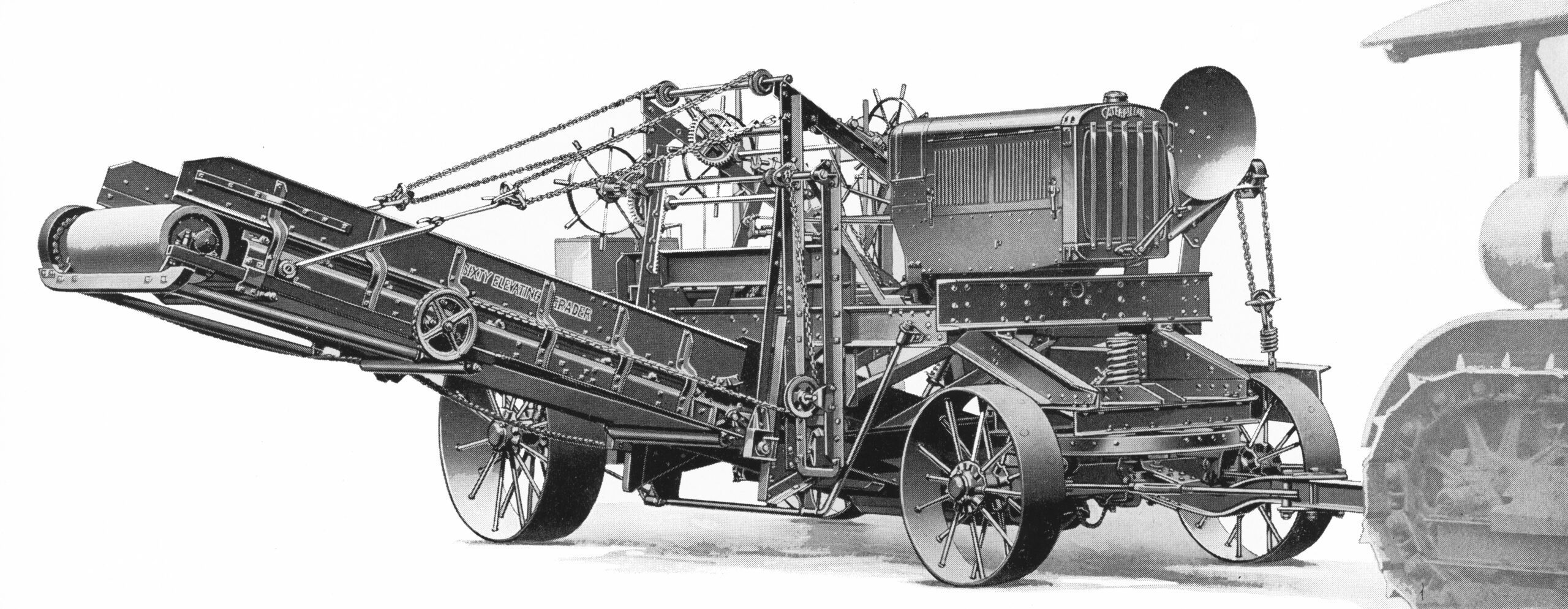

1912-21 A Elevating Grader 8000# weight
A-356 to A-538 1912-1915
A-539-575 1915
A-576-644 1915-1916
A-6445-840 1916-1921
***
1912-27B Elevating Grader 9600# weight
B-365 to B-538 1912-1915
B-539-575 1916
B-576-644 1916-1917
B-645-905 1917-1922
B-906-960 1922-1925
B 961- 992 1926-1927
***

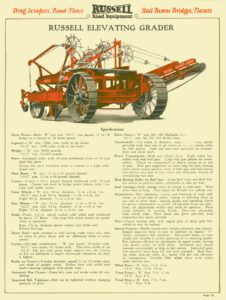

Russell B Heavy Elevating Grader
1917-21 B Heavy Elevating Grader 9600# weight
BH-655 to BH-809 1917-1921
***

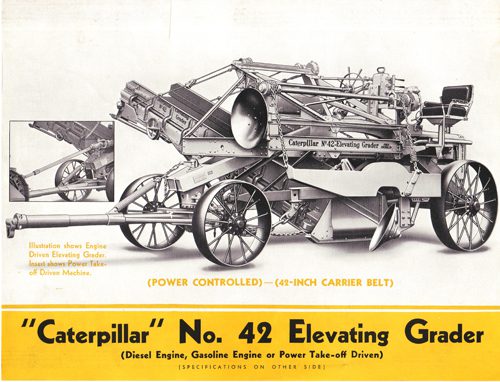

1917-28 Russell 42C Elevating Grader 10600# weight42-C BH-810-875 1922-192442-C BH-876-955 1924-192642-C BH-966-1170 1926-192742-C BH-1171- 1928
***

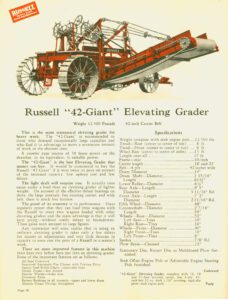

1927-28 Russell 42 Giant Elevating Grader, 42G101-?, 12,600# weight
***
*** Caterpillar purchased Russell Manufacturing in 1928
Caterpillar Graders:
1928-1928 Caterpillar Blade Grader “Junior”, 8′ blade, 1850# weight
J10236-J10375 1928 mfg in Minneapolis
J10376-J10425 1929 mfg in Minneapolis
***

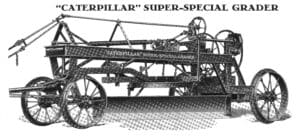

Caterpillar Super Special grader hand control

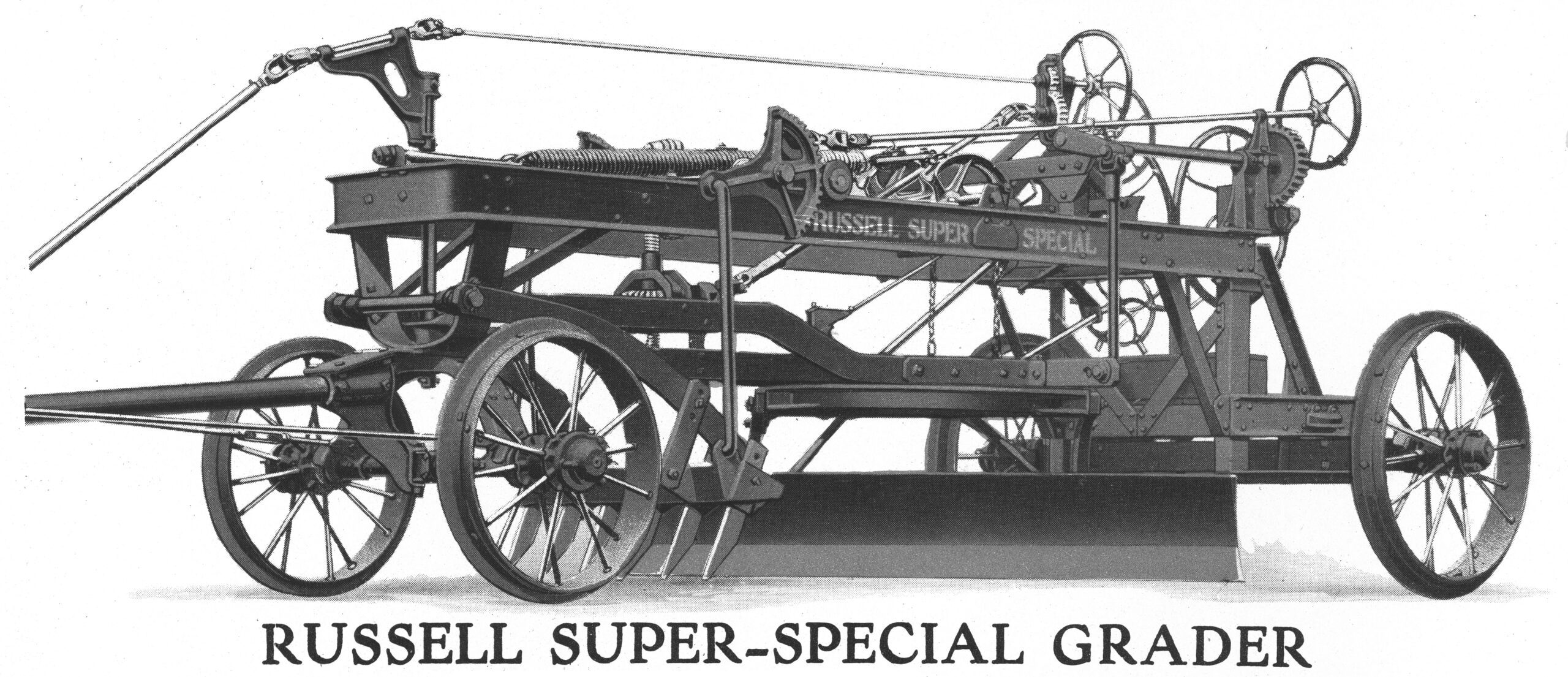

1928-30 Caterpillar Super Special (former Russell Super Special), 8′,9′,10′,12′ blade, 5900# weight
Mfg in Minneapolis
T7584-T7900, 1928
T7901-T8275, 1929
T8276-T8851, 1930
***

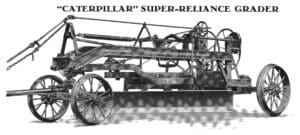

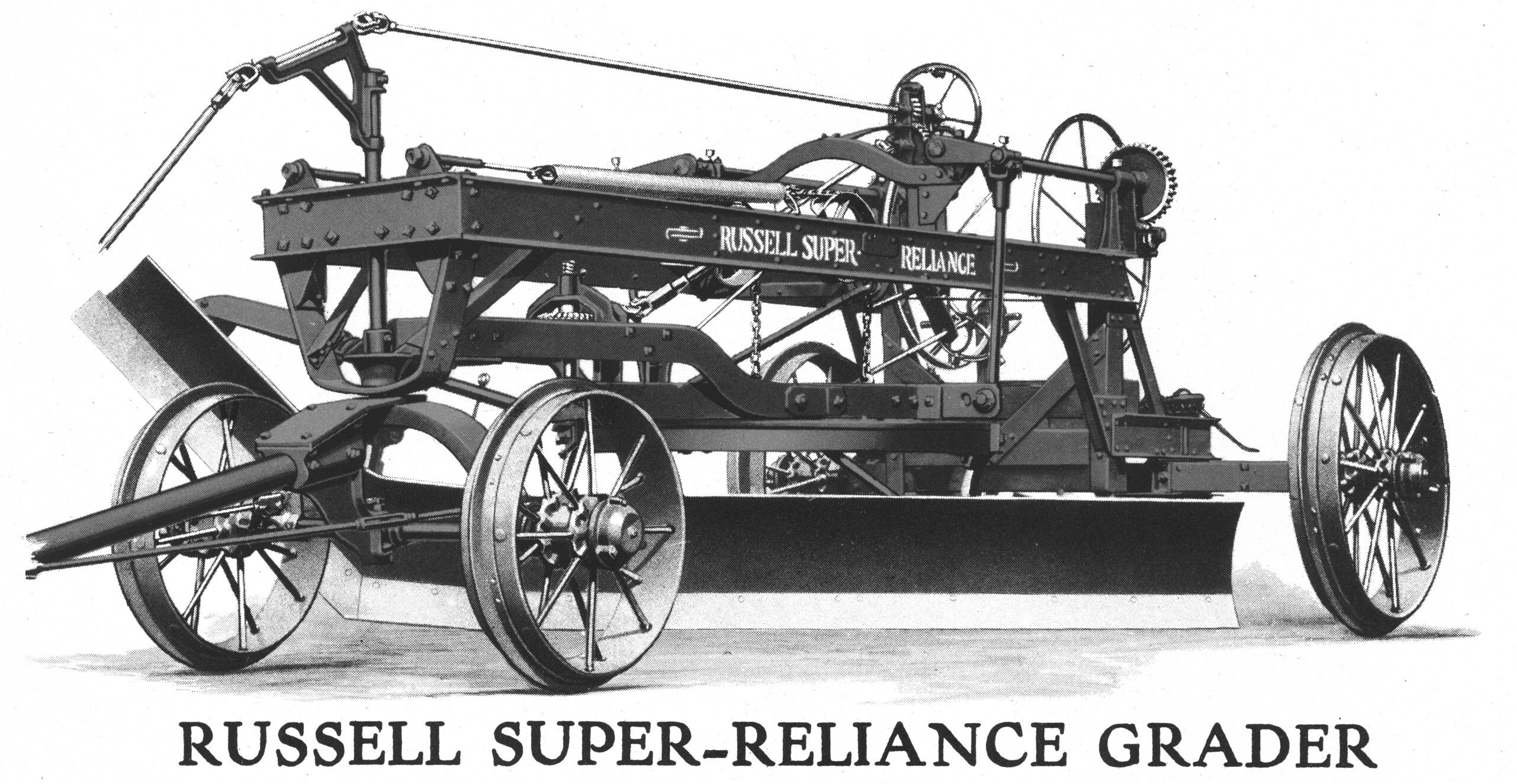

1928-30 Caterpillar Super Reliance (former Russell Super Reliance) 10′,12′ blade, 8650# weight
Mfg in Minneapolis
R1476-R1525, 1928
R1526-R1725, 1929
R1726-R1870, 1930
***

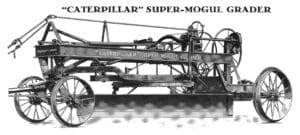

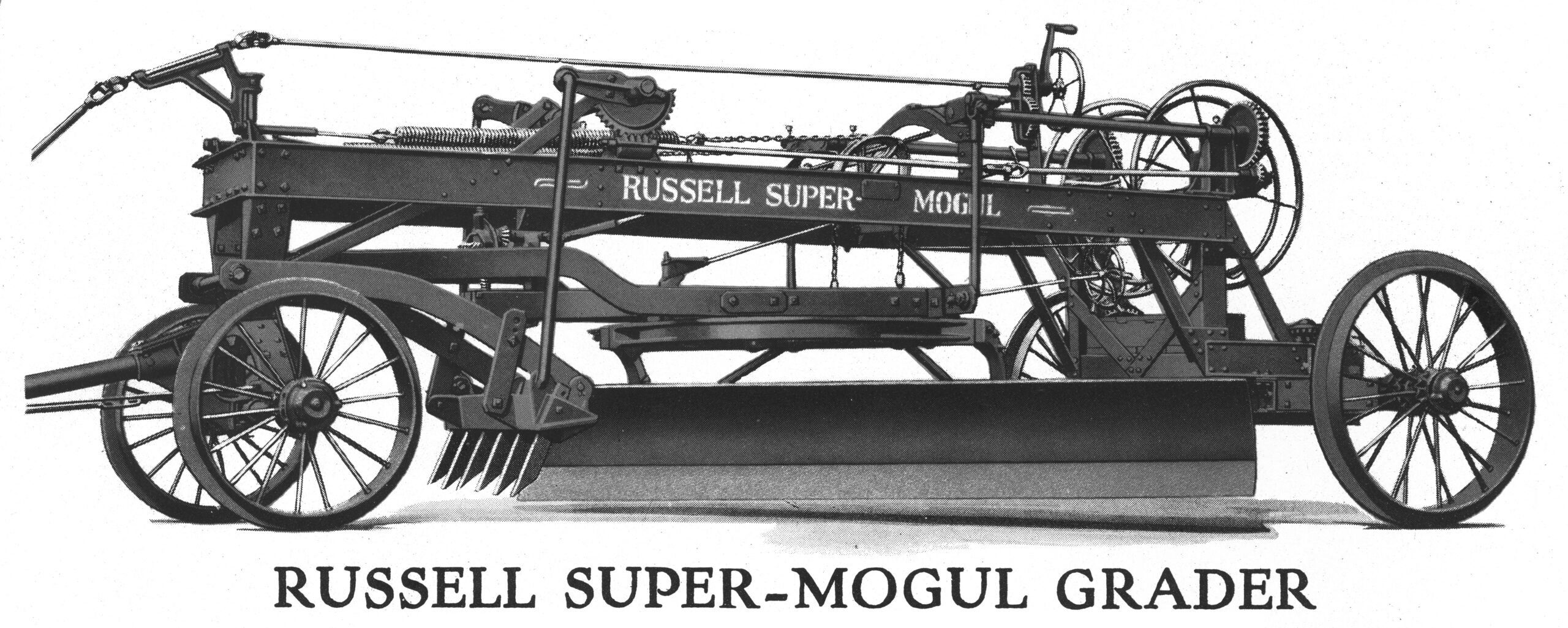

1928-31 Caterpillar Super Mogul (former Russell Super Mogul) 12′ blade, 10,000# weight
Mfg in Minneapolis
M2691-M2850, 1928
M2851-M3100, 1929
M3101-M3320, 1930
M3321-M3425, 1931
***

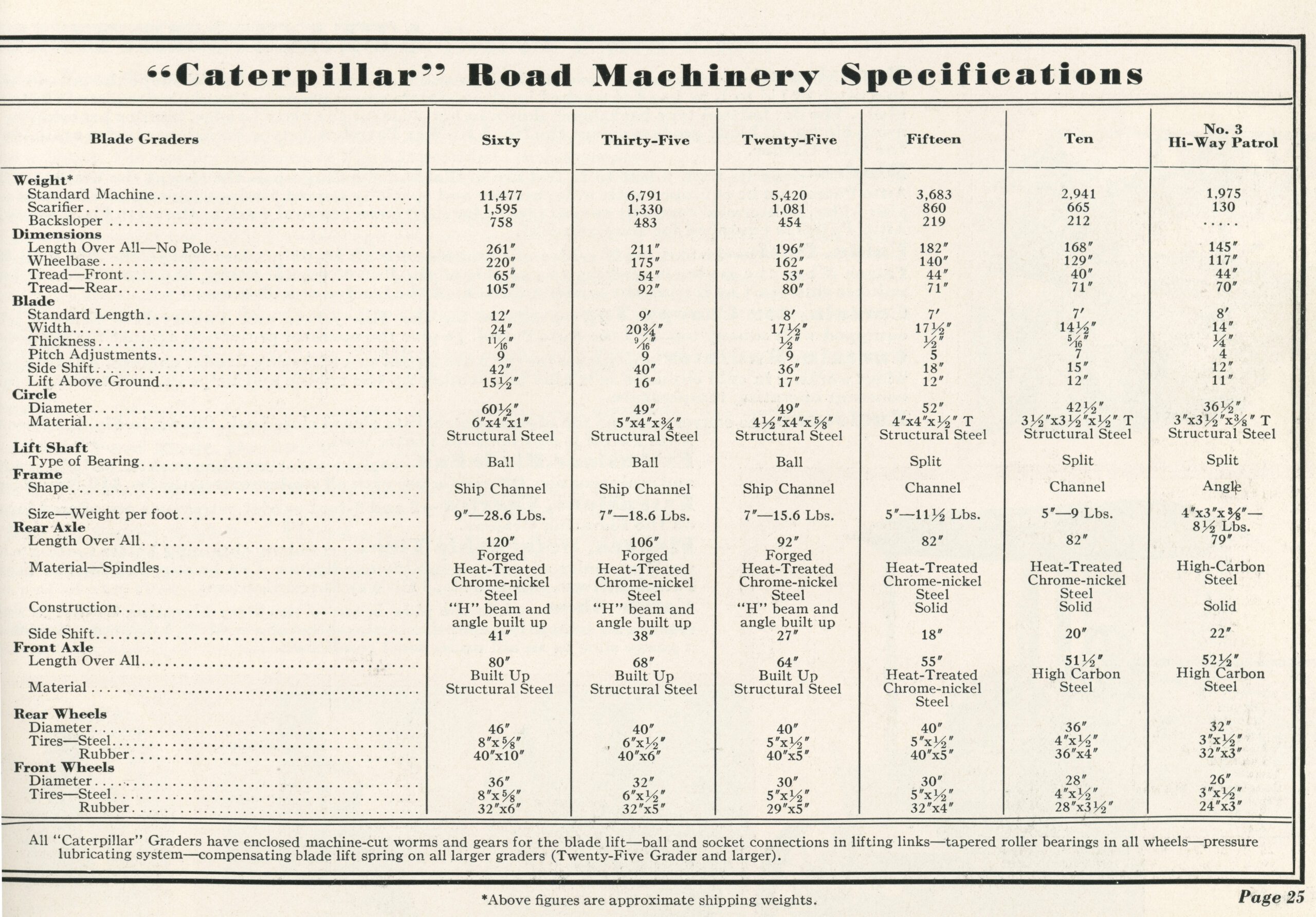

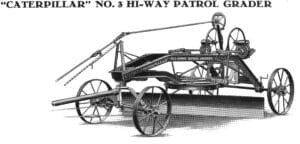

1928-32 Caterpillar Hi-Way Patrol Grader (former Russell Hi-way Patrol No.3), 6′.8′.10′ blade, 1975 weight
Mfg in Minneapolis
G2934-G3000, 1928
G3001-G3300, 1929
G3301-G3400, 1930
G3401-G3600, 1931
G3601-G3700, 1932
***

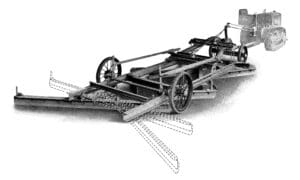

1929-30 Caterpillar Twenty Planer, 12′ blade, 4465# weight mfg in Minneapolis
N1-N6, 1929
N7-N310, 1930
***
1925-28 Caterpillar No 3 (former Russell No 3 Std Blade Grader)
S-4951 to S-6000 Built 1925-28
***

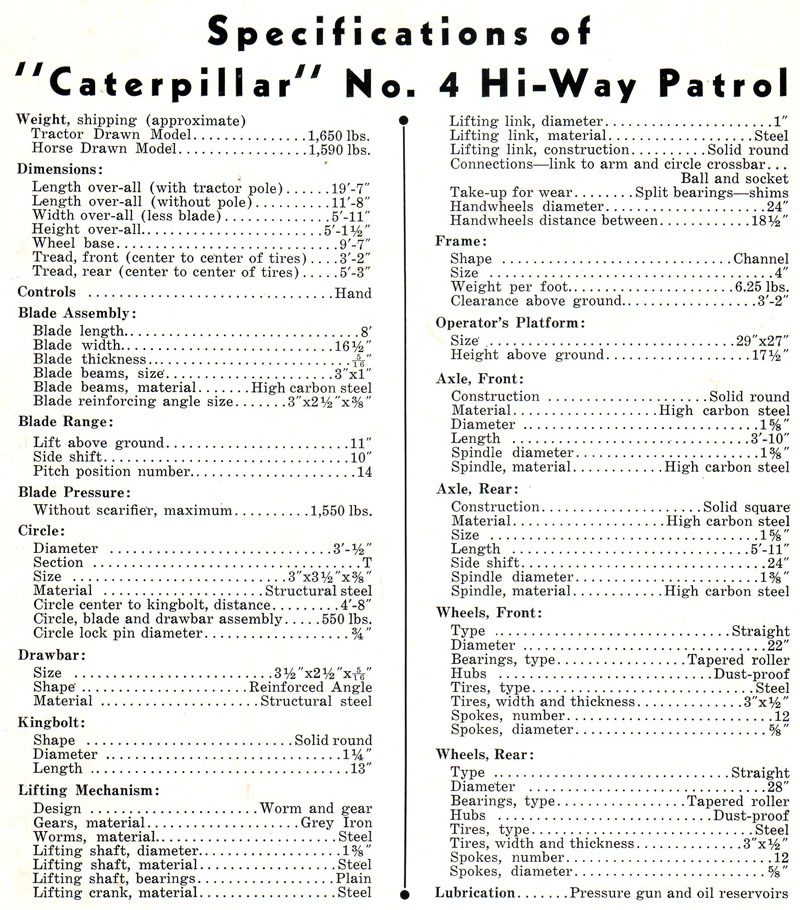

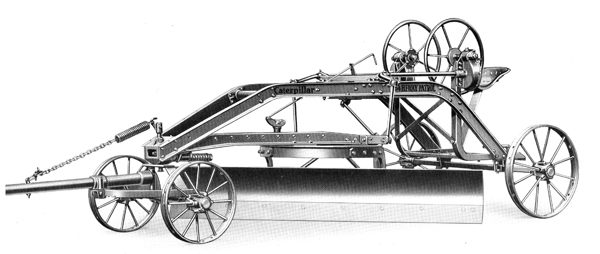

1932-41 Caterpillar No 4 Hi-way Patrol, 8′ blade, 1650# weight
3D-1 to 3D-100, 1932 mfg Minneapolis
mfg in Peoria
3D101-3D200, 1933
3D201-3D300, 1934
3D301-3D500, 1935
3D501-3D599, 1936
3D600-3D782, 1937
3D783-3D941, 1938
3D942-3D1077, 1939
3D1078-3D1154, 1940
3D1155-3D1300, 1941
***

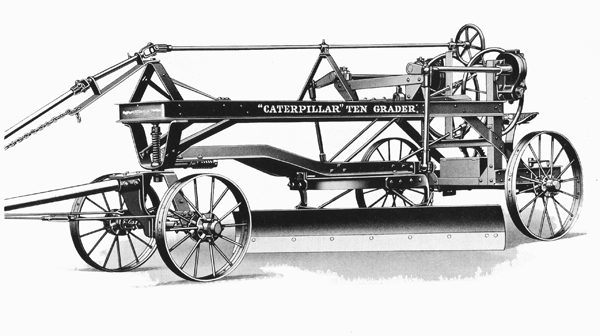

1929-30 Caterpillar Model Ten (former Russell Standard No.1) 7′ blade, 2980# weight
E-1201 to E-1400, 1929 mfg in Minneapolis
Specs:
129″ wheelbase
7′ blade
14.5″ blade width
5/16″ blade thickness
Frame 5″ channel
Rear wheels 36″ dia.
Front wheels 28″ dia.
***

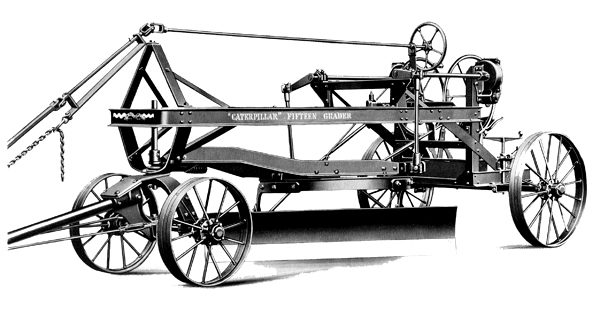

1928-30 Caterpillar Model 15 (former Russell Standard No.2) 7′ blade, 3720# weight
Minneapolis Built From:
D1501-D1650, 1928
D1651-D1950, 1929
D1951-D2150, 1930
***

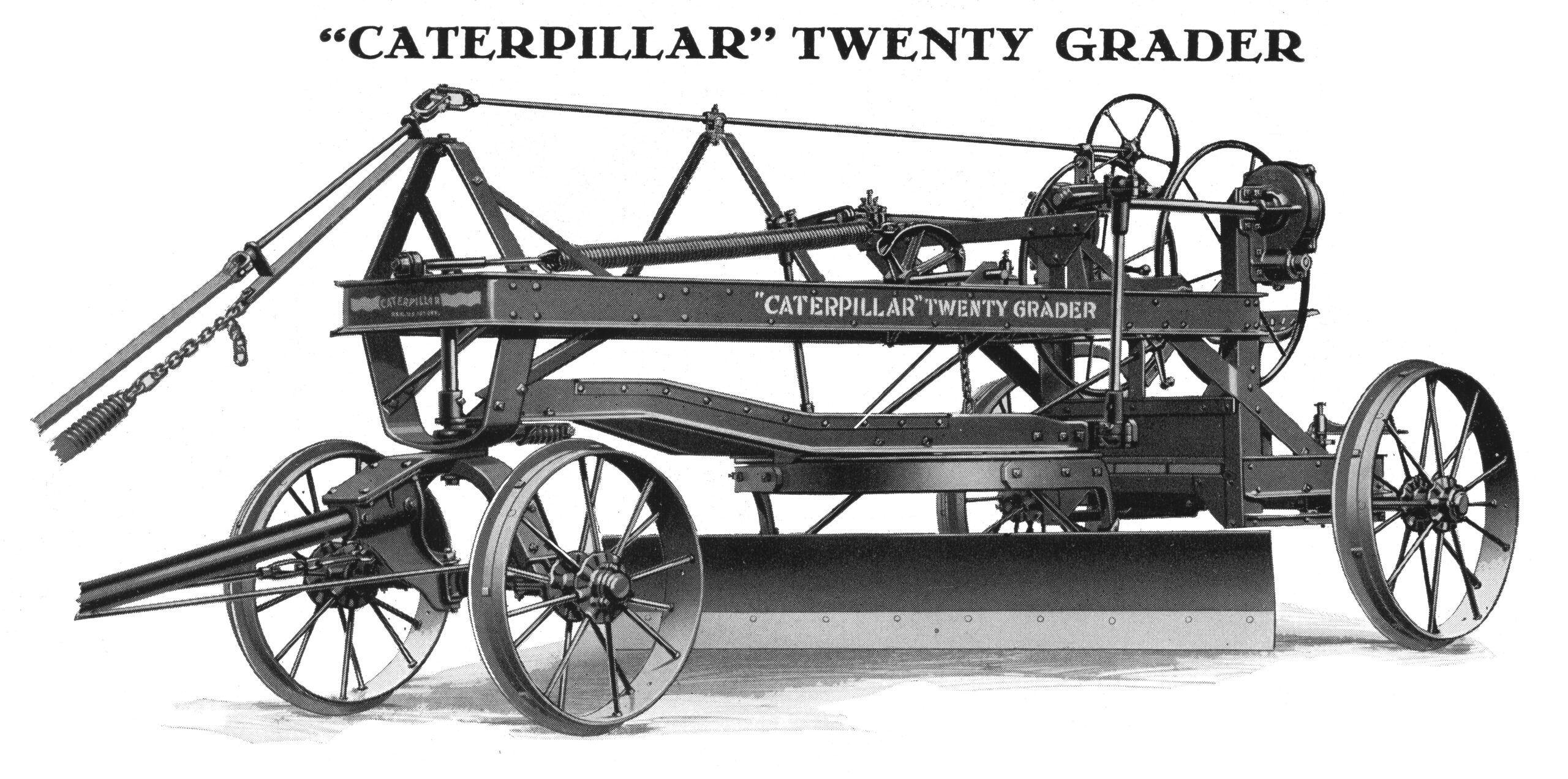

1928-30 Caterpillar No. 20 (former Russell Std No3) 8′ blade, 4290# weight, straight wheel
mfg in MinneapolisS6001-S6250, 1928
S6251-S6550, 1929
S6551-S6755, 1930
1930 Caterpillar No. 20 (former Russell Std No3) 8′ blade, 5420# weight, leaning wheel
mfg in Minneapolis
7A1-7A102, 1931
***

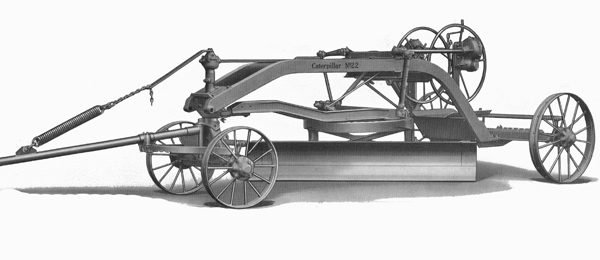

1936-42 Caterpillar No 22, 8′ blade, 3570# weight
H.C. Weight 3575 lbs.
P.C. Weight 3660 lbs.
Width 17″
3/8″ thick
Frame 4 7/8″x3″ box
Front wheels 28″
Rear wheels 36″
Mfg in Peoria
3H1-3H251, 1936
3H252-3H401, 1937
3H402-3H525, 1938
3H526-3H597, 1939
3H598-3H661, 1940
3H662-3H740, 1941
3H741-3H751, 1942
***
Caterpillar No 25 grader hand control
1931-32 Caterpillar Twenty Five Leaning Wheel, 8′ blade, 5810# weight
Mfg in Minneapolis
7A103-7A150, 1931
7A151-7A250, 1932
***

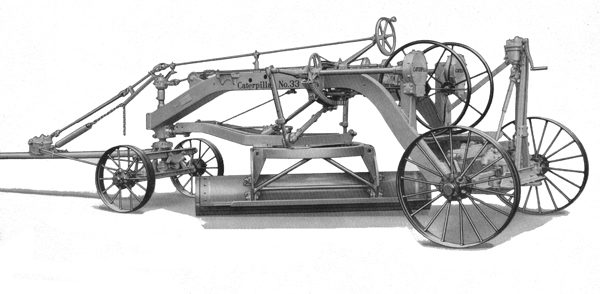

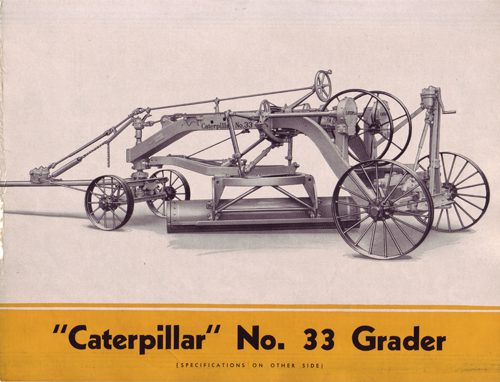

1933-37 Caterpillar No 33, 8′ blade, 5810# weight, Hand Control
Mfg in Peoria
7A251-7A3323, 1933
7A324-7A424, 1934
7A425-7A527, 1935
7A526-7A812, 1936
7A813-7A927, 1937
***

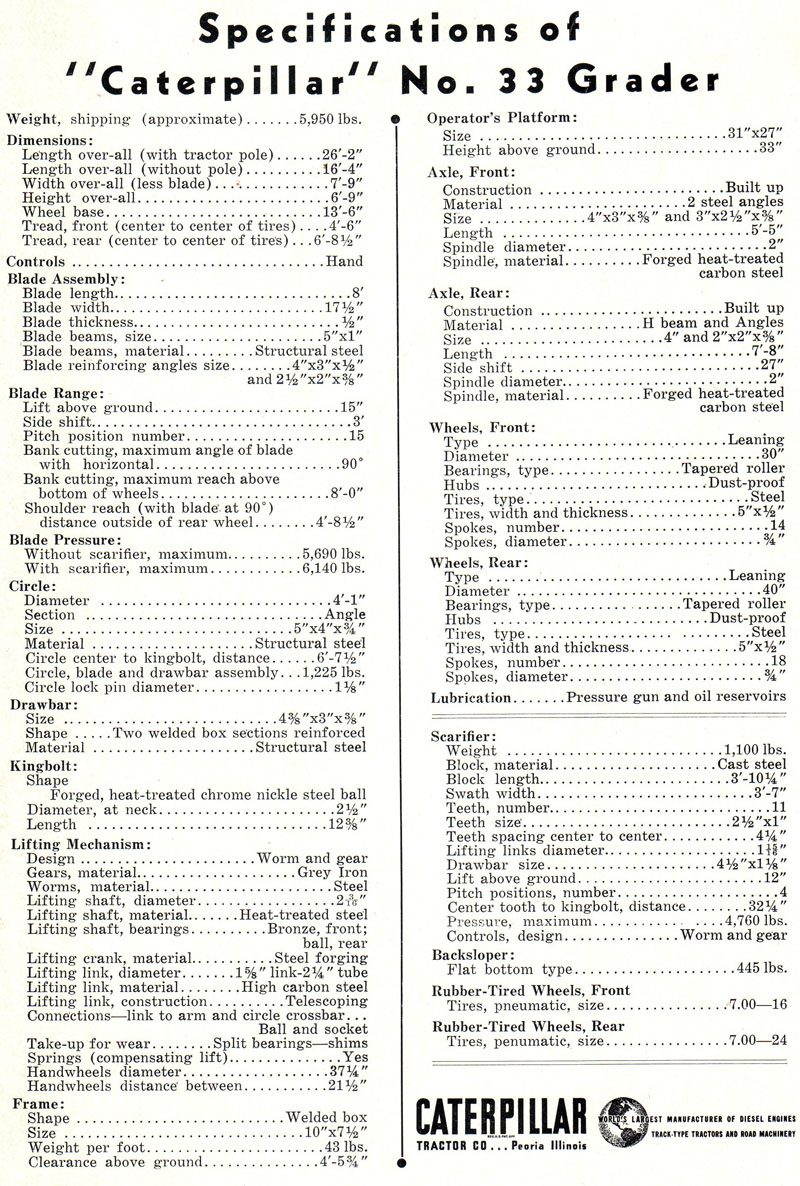

1937-42 Caterpillar No 33 Single Frame, 8′ blade, 5950# weight
Mfg in Peoria
2J1-2J49, 1937
2J50-2J259, 1938
2J260-2J340, 1939
2J341-2J454, 1940
2J455-2J576, 1941
2J577-2J600, 1942
***
1930-32 Caterpillar Model 30 Leaning Wheel, 9′ blade, 7100# weight
mfg in Minneapolis
4A1 to 4A-50, 1930
4A51-4A550, 1931
4A551-4A569, 1932
***

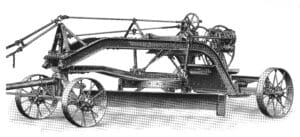

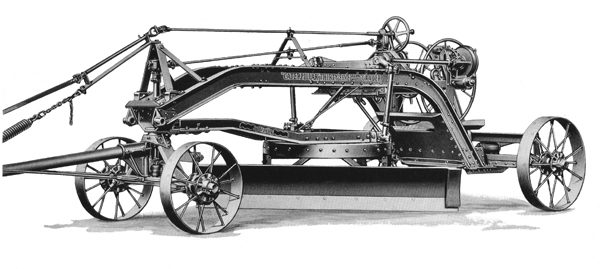

Caterpillar No 35 grader hand control

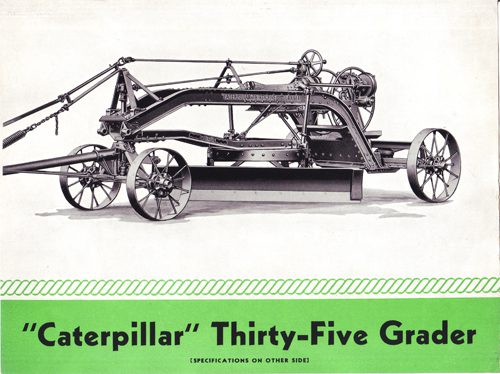

1932 Caterpillar Thirty-Five Leaning Wheel, 9′ blade, 7100# weight
Mfg in Minneapolis
4A570-4A651, 1932
***
***
1933-36 Caterpillar No 44, Hand Control, 10′ blade, 7100# weight
Mfg in Peoria
4A652-4A790, 1933
4A791-4A1105, 1934
4A1106-4A1513, 1935
4A1514-4A1925, 1936
***

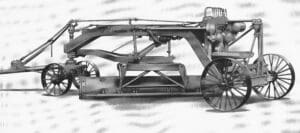

1935-36 Caterpillar 44, Power Control, 10′ blade, 7800# weight
Mfg in Peoria
5E7001-5E7081, 1935
5E7082-5E7195, 1936
***
1937-42 Caterpillar No 44, Hand Control and Power Control Single Frame 10′ blade, 7700,8170# weight
Mfg in Peoria
8H1-8H342, 1937
8H343-8H590, 1938
8H591-8H780, 1939
8H781-8H956, 1940
8H957-8H1022, 1941
8H1023-8H1225, 1942
***
Caterpillar Power Units for Power Control Graders
1934-36 Caterpillar No. 44 (5E7001-5E7195
mfg in Peoria, 1 Cyl 3-5/8″ x 4″ gas
4D99-4D146, 1934
4D147-4D500, 1935
4D501-4D750, 1936
1936-42 Caterpillar No.44 (8H1-8H1225)
mfg in Peoria, 1 cyl 3-5/8″ x4″ gas
4D751-4D751, 1936
4D752-4D1024, 1937
4D1025-4D1167, 1938
4D1168-4D1282, 1939
4D1283-4D1371, 1940
4D1372-4D1456, 1941
4D1457-4D1478, 1942
***
1932 Caterpillar Fifty leaning wheel, 12′ blade, 9700# weight
Mfg in Minneapolis
6C1-6C200, 1932

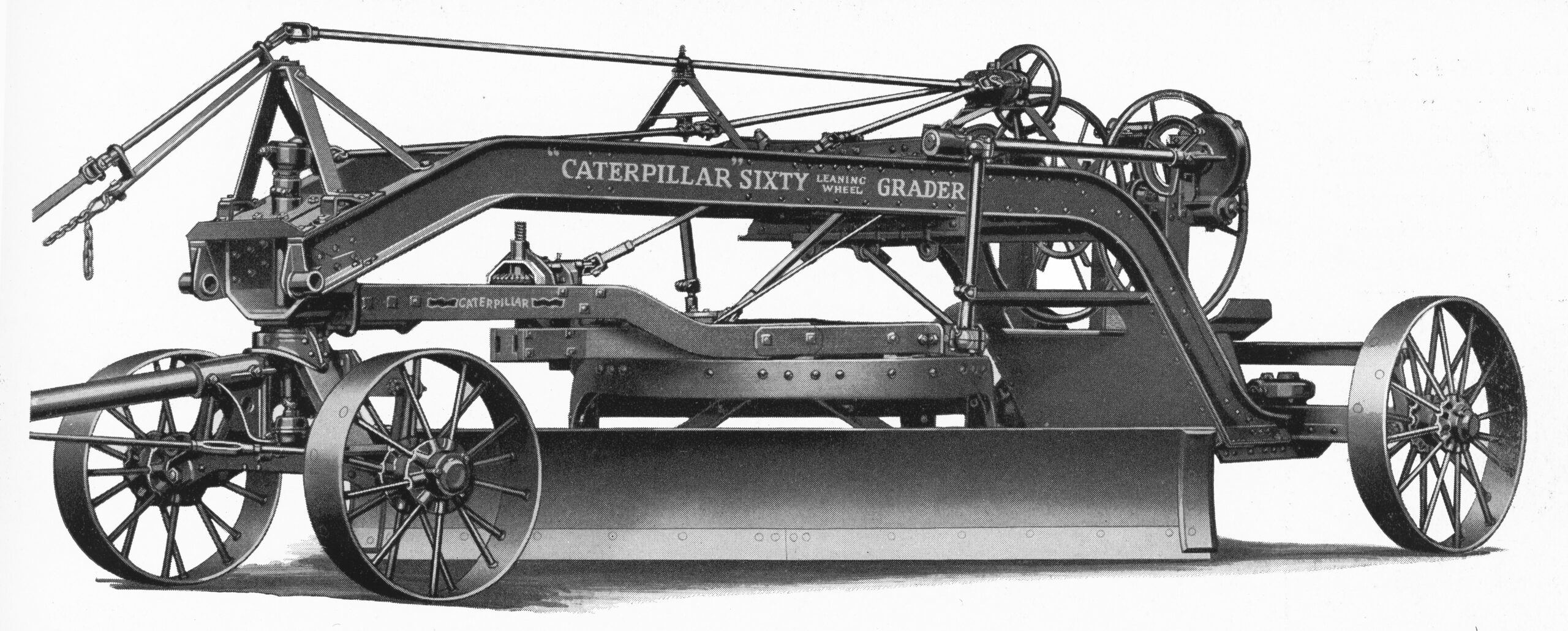

1930-32 Caterpillar No 60, Leaning Wheel, 12′ blade, 11700# weight
mfg in Minneapolis
2A1-2A300, 1930
2A301-2A602, 1931
2A603-2A707, 1932
***
1932 Caterpillar No 60 leaning Wheel Power Control, 12′ blade, 12170# weight
mfg in Minneapolis
9C1-9C50, 1932
***

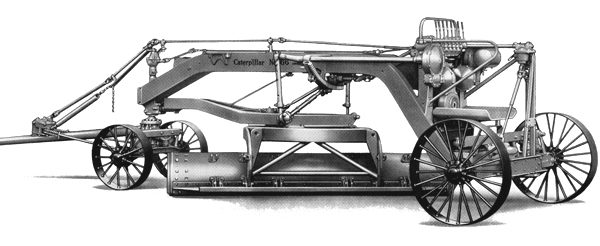

1933-36 Caterpillar No 66 hand Control, 12’blade, 10,120#weight
mfg in Peoria
6C201-6C246, 1933
6C247-6C519, 1934
6C520-6C751, 1935
6C752-6C951, 1936
***
1933-36 Caterpillar No. 66 Power Control, 12′ blade, 10,610# weight
Mfg in Peoria
5E1-5E12, 1933
5E13-5E46, 1934
5E47-5E292, 1935
5E293-5E451, 1936
***

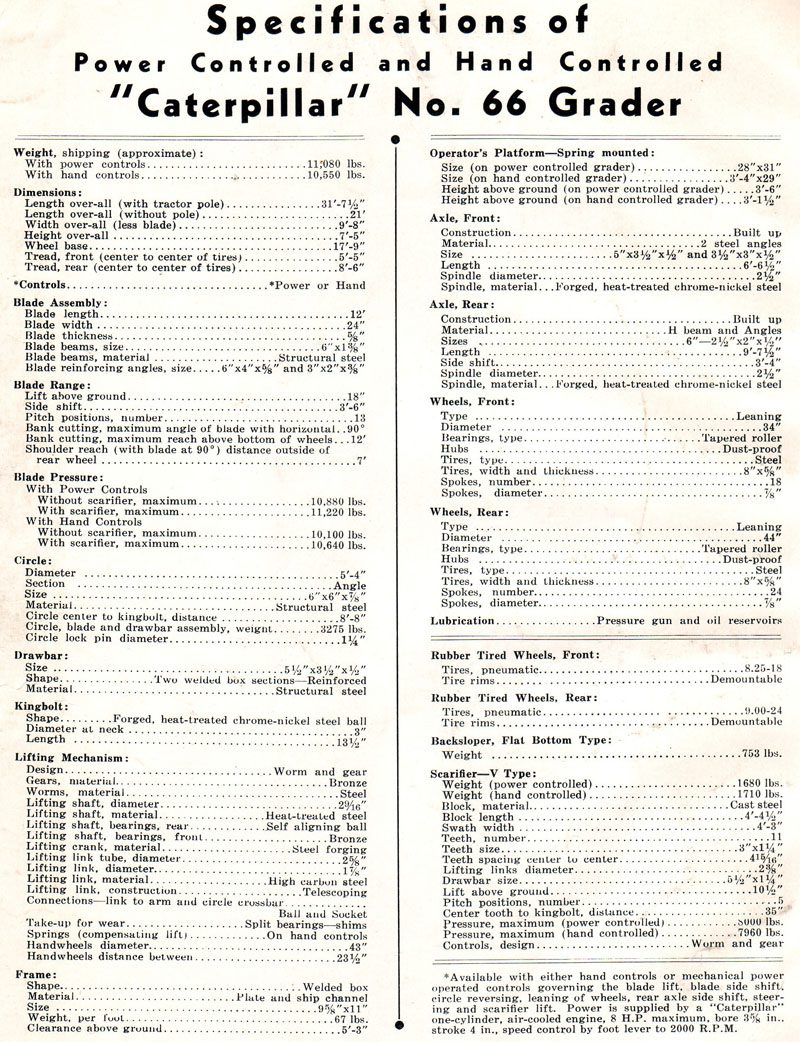

1937-42 Caterpillar No 66 hand and power control single frame, 12′ blade, 10550/11080# weight
mfg in Peoria
7H1-7H333, 1937
7H334-7H547, 1938
7H548-7H699, 1939
7H700-7H7858, 1940
7H859-7H997, 1941
7H995-7H1200, 1942
***
1933-42 Caterpillar Power units for power control graders, 1 cly 3-5/8″x4″ gas motor
1933-36 Caterpillar No.66 (5E1-5E451)
4D1-4D50, 1933 mfg in san leandro
4D51-4D146, 1934 mfg in Peoria
4D147-4D500, 1935
4D501-4D750, 1936
1936-42 Caterpillar No 66 (7H1+7H1200)
4D751-4D751, 1936
4D752-4D1024, 1937
4D1025-4D1167, 1938
4D1168-4D1282, 1939
4D1283-4D1371, 1940
4D1372-4D1456, 1941
4D1457-4D1478, 1942
***
***

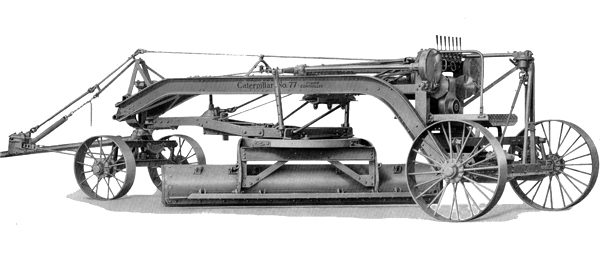

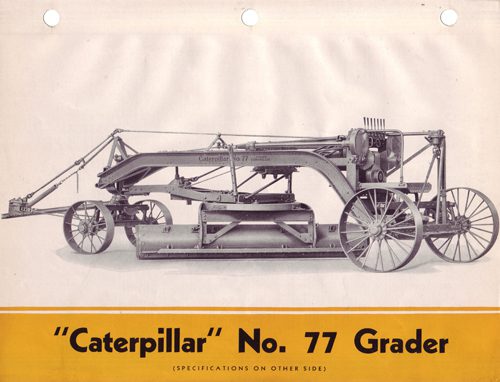

1935-37 Caterpillar No 77 power Control, 12′ blade, 12170# weight
mfg in Peoria
9C51-9C94, 1935
9C95-9C98, 1936
9C99-9C118, 1937
Width 24″
Thickness 11/16″
Frame 9″ ship channel
Front wheels 36″ dia. leaning
Rear 46″ dia. leaning
***
1933-42 Caterpillar Power units for Power control graders
No. Sixty (9C1-9C50) & No. 77 (9C51-9C118)
4D1-50, 1933 mfg in San Leandro
4D51-146, 1934 mfg in Peroia
4D147-4D500, 1935
4D501-4D750, 1936
4D751-4D751-1936
4D725-4D1024, 1937
4D1025-4D1167, 1938
4D1168-4D1282, 1939
4D1283-4D1371, 1940
4D1372-4D1456, 1941
4D1457-4D1478, 1942
***
Grader Options
Pneumatic Tires

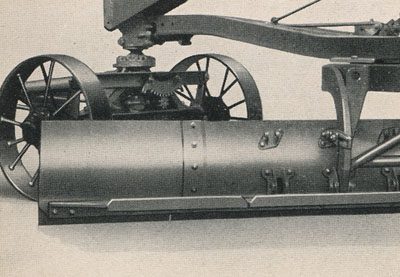

Blade Extensions for 66,44,33, & 22 and trailer patrol

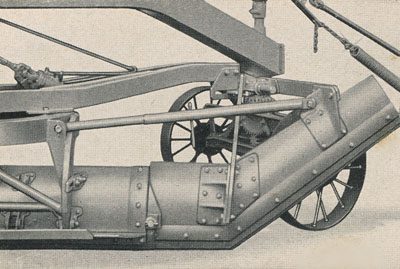

Back sloper for 66,44 & 33
Scarifier for 66, 44, 33 & 22
***

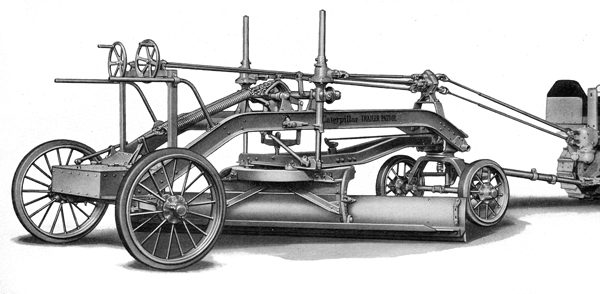

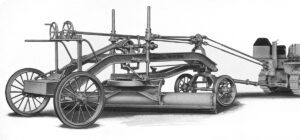

1929-32 Caterpillar Model 15 Trailer Patrol, 12′ blade, 4210# weight, mfg in Minneapolis
C1-C8, 1929
C9-C459, 1930
C460-C559, 1931
C56-C576, 1932
***

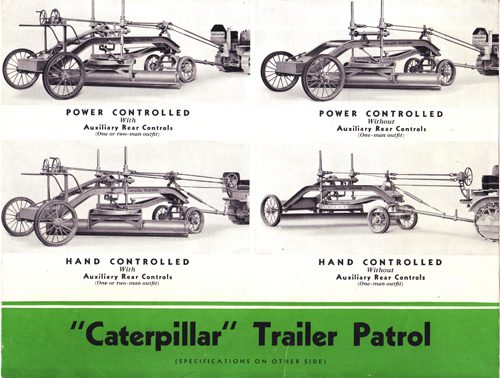

1932-36 Caterpillar Trailer Patrol, Hand and Powered, 12′ blade, 5760/5920# weight
5D1-5D50, 1932 mfg in Minneapolis
5D51-5D100, 1933 mfg in Peoria
5D101-5D150, 1935
5D151-5D250, 1936
Trailer Patrol Options
Scarifier

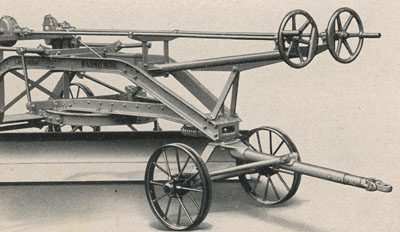

Front hand controls
Caterpillar Elevating Graders
1935-42 Caterpillar No. 42 Elevating grader
PTO Driven
2G1-2G12, 1935 mfg in Peoria 42″ belt, 28″ disc, 15540# weight
***
Gas/Diesel Driven
1G1-1G42, 1935, 1630/16770# weight
***
PTO/Gas/Diesel Driven
1G43-1G136, 1936
1G137-1G193, 1937
1G194-1G241, 1938
1G242-1G269, 1939
1G270-1G289, 1940
1G290-1G323, 1941
1G324-1G343, 1942
***
1928-29 Caterpillar No. 42 Giant Elevating Grader, 42″ belt, 24″ disc, 12600# weight
mfg in Minneapolis
42G234-42G250, 1928
42G251-42G330, 1929
***
1928-29 Caterpillar No. 42C Elevating Grader, 42″ belt, 24″ disc, 10600# weight, Ground Driven
mfg in Minneapolis
BH1179-BH1195, 1928
BH1196-BH1214, 1929
***
***

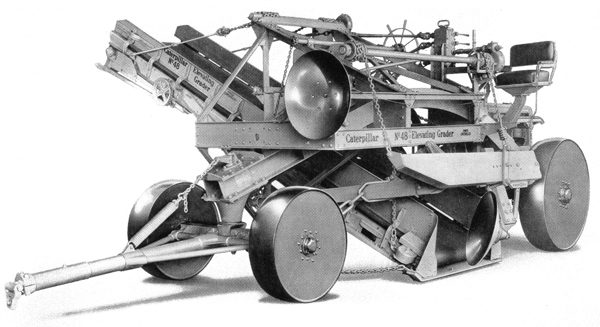

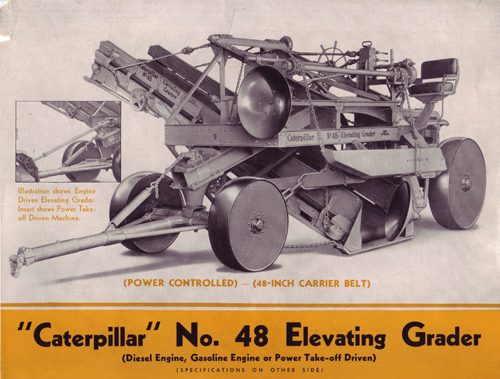

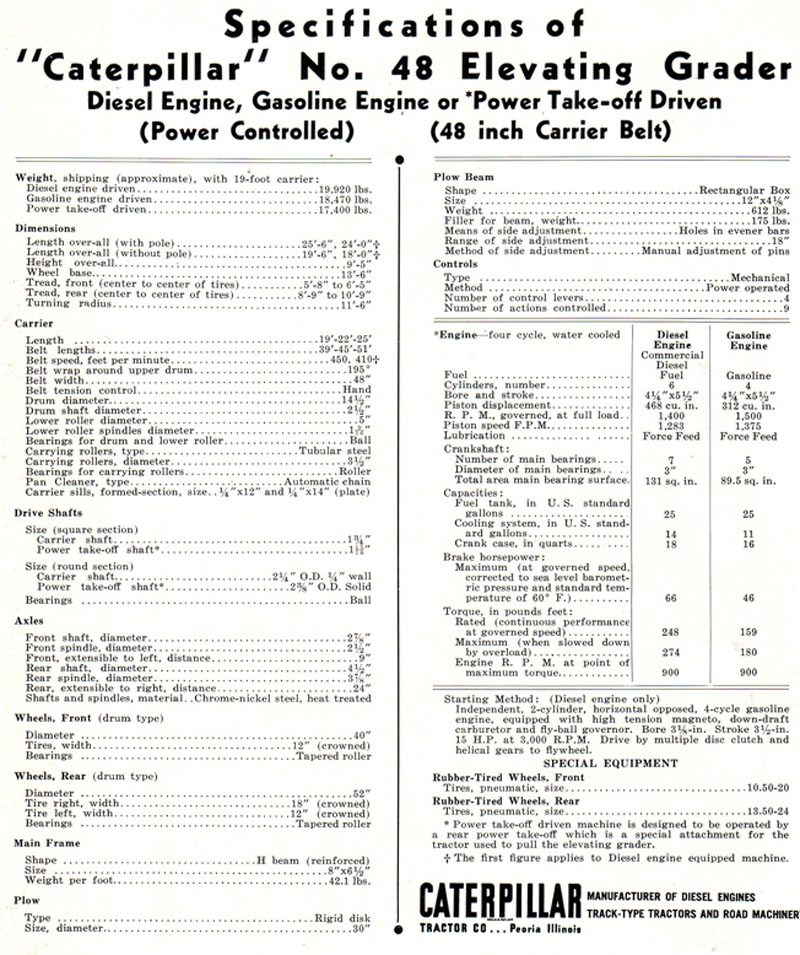

1934-42 Caterpillar Model 48 Elevating Grader
PTO Driven 5F1-5F49, 1934 Peoria, 48: belt, 30″ disc, 17800# weight
Gas 18210# weight, Diesel 18940# weight
4E1-4E40, 1933
4E41-4E100, 1934
4E101-4E105, 1935
4E106-4E182, 1936
4E183-4E212, 1937
4E213-4E232, 1938
4E233-4E261, 1939
4E262-4E280, 1940
4E281-4E330, 1941
4E331-4E470, 1942
***
***

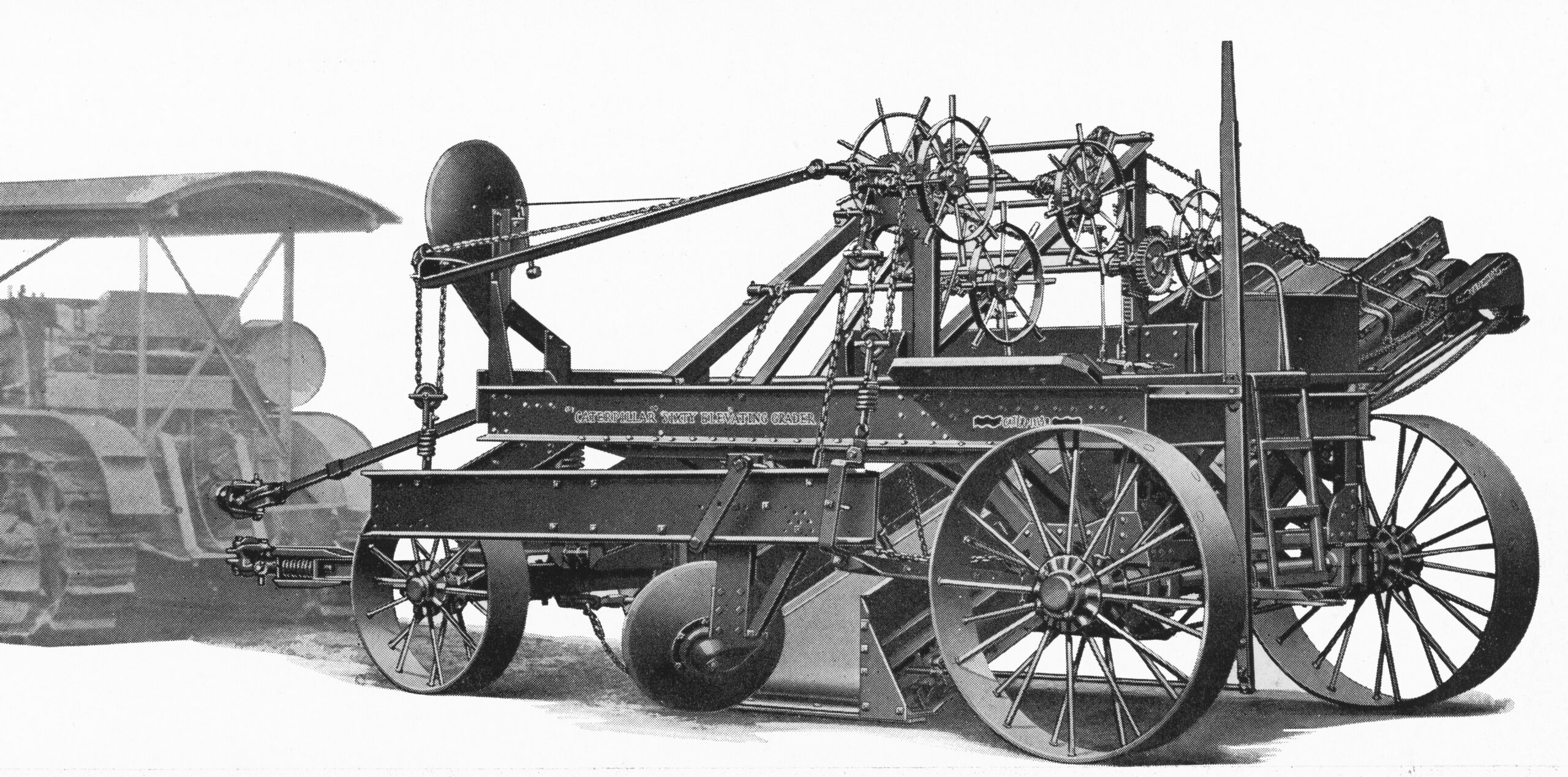

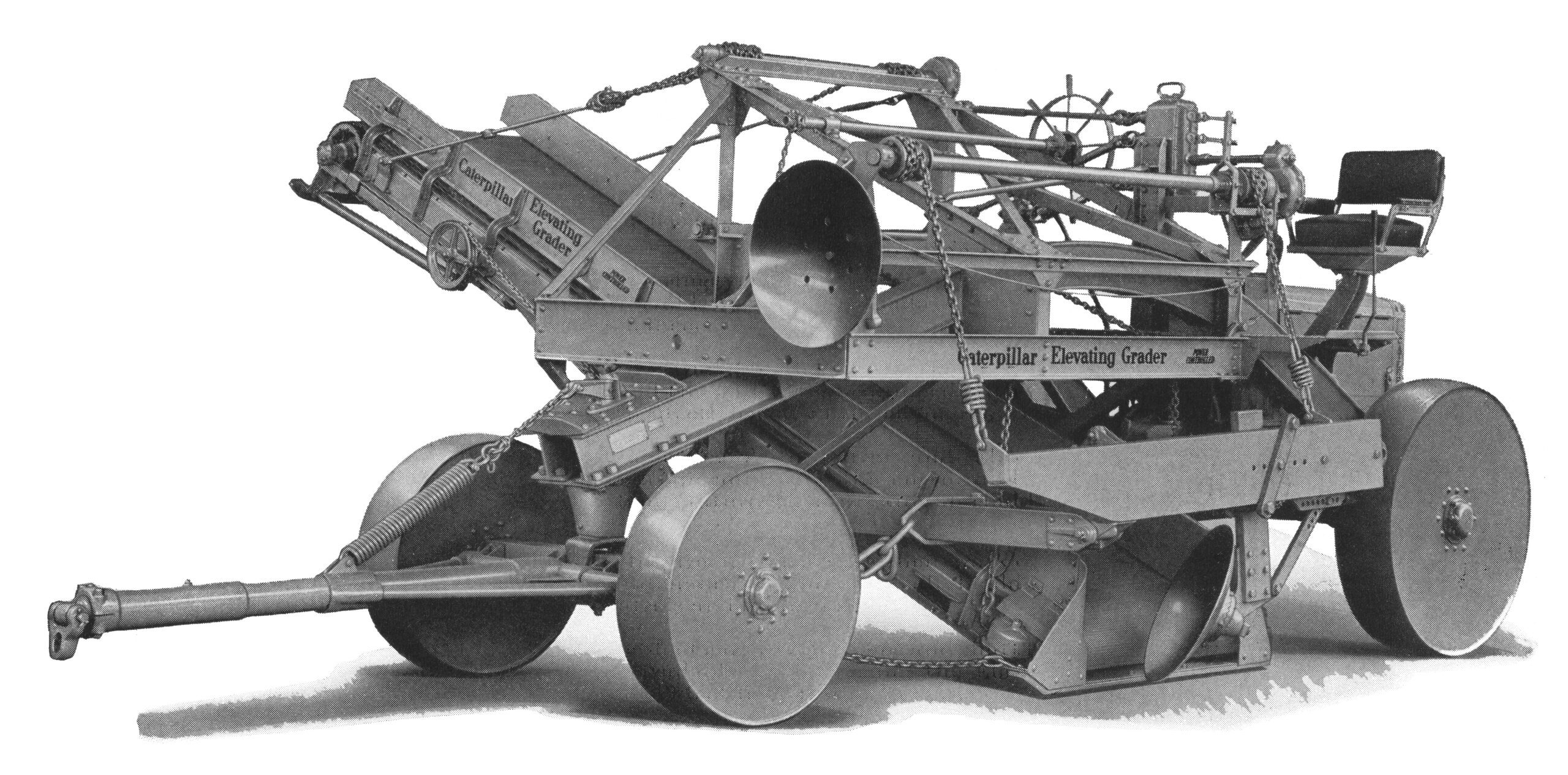

1929-32 Caterpillar Model 60 Elevating Grader
Engine/PTO mfg in Minneapolis, 42″ belt, 28″ disc, 16160#/14250# weight
K1-K150, 1929
K151-K409, 1930
K410-K529, 1931
K530-K602, 1932
1931-32 Caterpillar No. 60 Power units series Gas 4200G
6A1-6A208, 1931 Peoria 4 cyl 4″x5-1/2″ gas
6A209-6A259, 1932
4C7001-4C7028, 1932
***
Elevating Grader Options and Features:

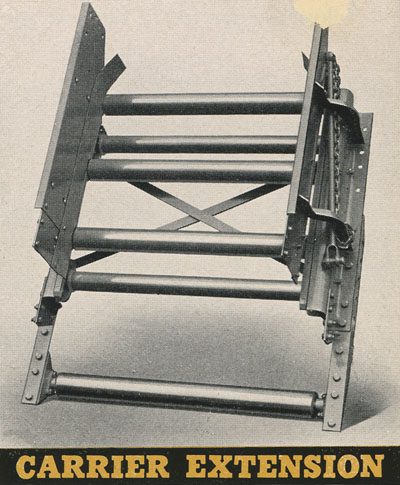

Optional Extensions of 3 foot to increase the carrier length

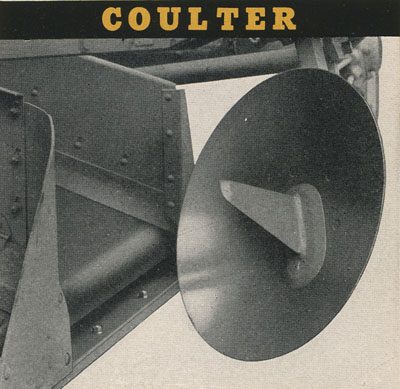

Optional Coulter knife is available for clay conditions

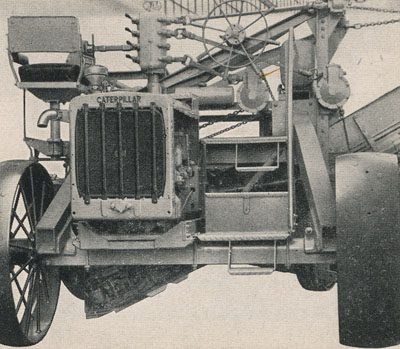

Engines mounted to provide counter balance on some models

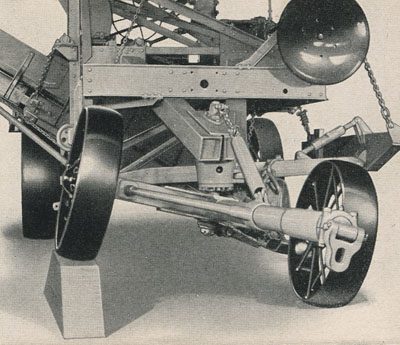

Oscillating front axle for rough ground operation

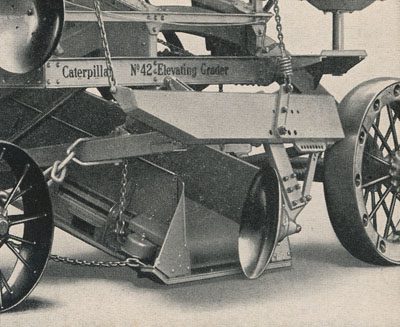

Adjustable plow and beam for any angle
***

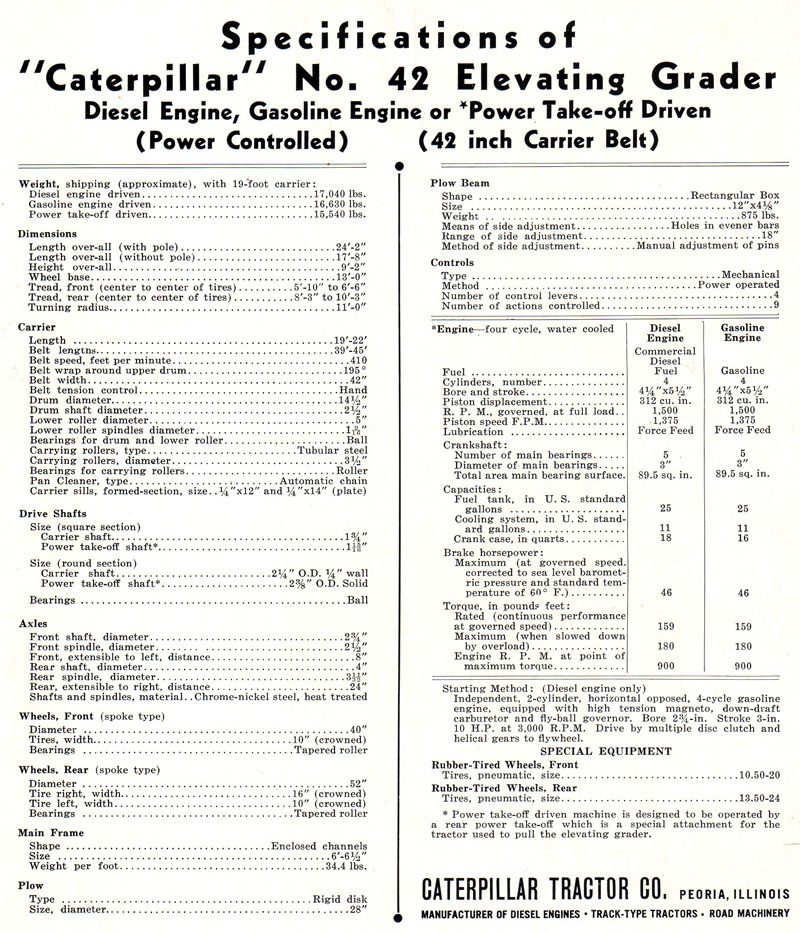

Specifications:
